Product Details:
|
| Item Name: | SINO KA200 30-360mm Linear Grating Ruler | Application: | Making Use Of Digital Readout Technology And A Small Linear Encoder |
|---|---|---|---|
| Applicable: | CNC Machine Tools /production Lines | Measure Length (mm): | 30mm-360mm |
| Main Material: | Metal | Resolution: | 1μm/5μm |
| Housing Cross Section（mm）: | 16*16/25*34/18*20/30*43/40*42 | Biggest Speed（m/min）: | 60 |
| Sealing Protection: | IP53 | Output Signal: | TTL |
| After-sale: | 36 Months Warranty | Accuracy: | ±5/±3/±10um |

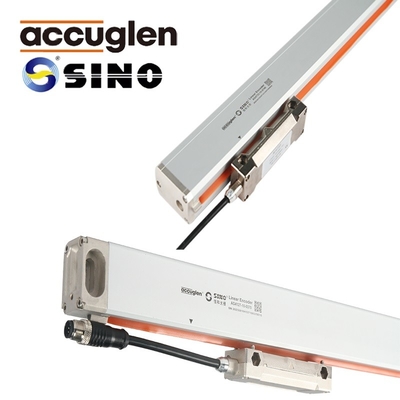

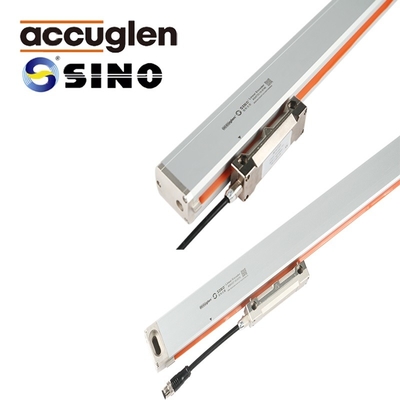

Cross Section 16 * 16cm KA-200 Series Milling Lathe Digital Readout Connection Linear Scale Encoder
The following features of our grating ruler:
These are our grating ruler's features.
1. Accelerated movement, exceeding sixty yards per minute
2. Easy movement and efficient repeating placement are made possible by the sliding sections of the bearings.
3. Signal cables used in layers isolation wire mesh and metal soft shell protection provide excellent watertight and anti-interference performance.
4. The sturdy body projection and chrome-plated alloy scales head are resistant to wear since the aluminum alloy substance has been anodized.
5. The linear scale can be used to find the position on a range of digitally read devices to aid in internal processing.
installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
