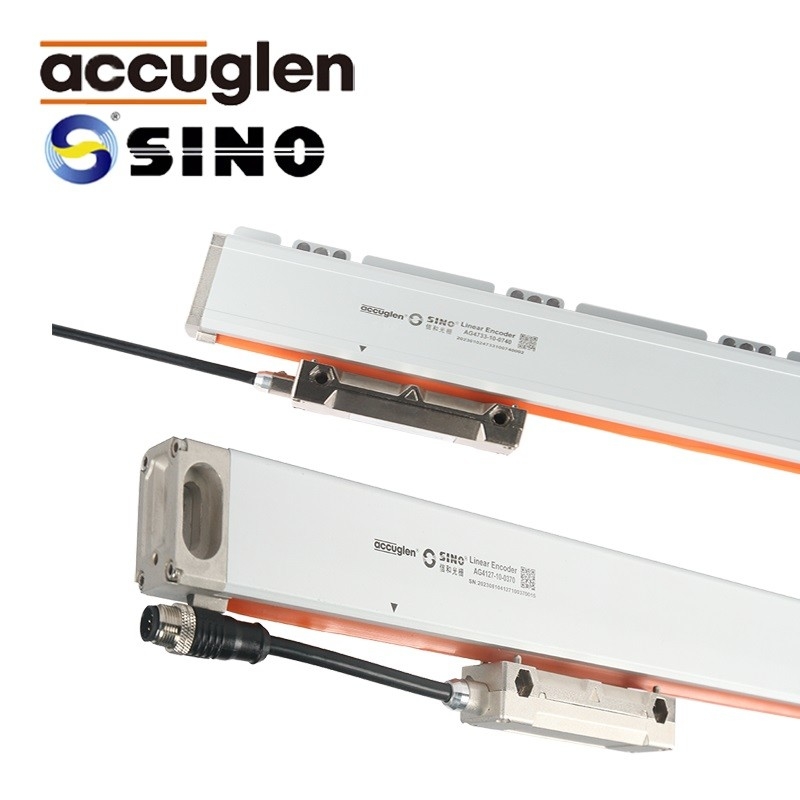

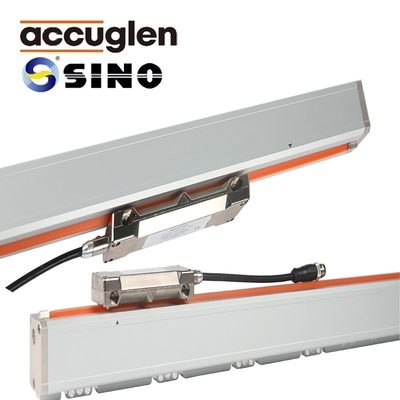

CNC Lathe Ka Series Digital Readout Connection Linear Scale Encoder

Brand Name:	SINO
Model Number:	KA200 30-360mm
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO KA200 30mm-360mm Linear Grating Ruler

Application:

Making Use Of Digital Readout Technology And A Small Linear Encoder

Applicable:

CNC Machine Tools / Automated Production Lines

Measure Length (mm):

30mm-360mm

Material:

Metal

Resolution:

1μm/5μm

Operating Temperature:

32-113℉

Voltage:

AC 100V-240V 50Hz-60Hz

Sealing Protection:

IP53

Output:

TTL

Warranty Period:

36 Months

Accuracy:

±3μm/±5μm/±10μm（20±1℃、1000mm）

Supply Ability:

3000 sets per month

Highlight:

Ka Series Linear Scale Encoder

CNC Lathe Linear Scale Encoder

Product Description

CNC Lathe Ka Series Digital Readout Connection Linear Scale Encoder

The following features of our grating ruler:

1. Quick motion, going faster than sixty meters every minute
2. The sliding parts of the bearings enable simple movement and effective repeating positioning.
3. Good waterproof and anti-interference performance are provided by signal cables that feature multilayered isolation wire mesh and metal soft shell protection.
4. The anodized aluminum alloy material of the robust shell projecting and chrome-plated alloy scale head prevent wear.
5. To support internal processing, a linear scale can be utilized to determine the location on a variety of digitally read devices.

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

CNC Lathe Ka Series Digital Readout Connection Linear Scale Encoder 0

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

CNC Lathe Ka Series Digital Readout Connection Linear Scale Encoder 1

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

CNC Lathe Ka Series Digital Readout Connection Linear Scale Encoder 2
