Product Details:
|
| Item Name: | SINO KA200 30-360mm Linear Grating Ruler | Function: | Lathe Machine /milling Machine |
|---|---|---|---|
| Measure Length (mm): | 30-360 | Material: | Metal |
| Resolution: | 1μm/5μm | Color: | Silvery |
| Housing Cross Section（mm）: | 16*16 | Biggest Speed（m/min）: | 60 |
| Sealing Protection: | IP53 | Output: | TTL |
| Warranty Period: | 1 Year | Accuracy: | ±3μm/±5μm/±10μm |

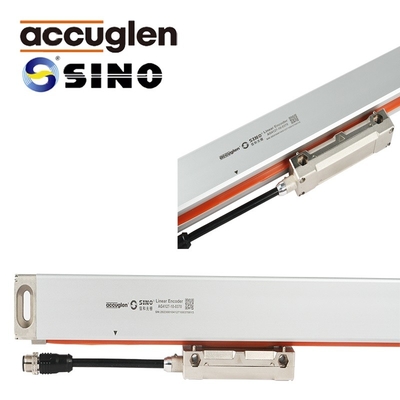

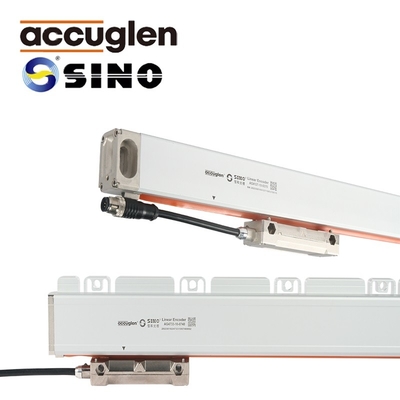

High Precision Enclosed Absolute Linear Grating Ruler (Ka-200) Applied To CNC Machine Tools
The following features of our grating ruler:
1. Fast movement, exceeding 60 meters per minute
2. The sliding components of the bearing can perform minimal frictional motion and effective repeated placement along the grating glass.
3. The signal cable adopts multi-layer isolation steel wire mesh and metal soft shell protection, which has good waterproof and anti-interference performance.
4. Due to the use of anodizing technology in aluminum alloy materials, the sturdy chrome plated alloy scales and protruding parts of the body are wear-resistant.
5. By using a grating to locate the position, linear rulers can be used on various digital reading machines to assist in internal processing.
installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
