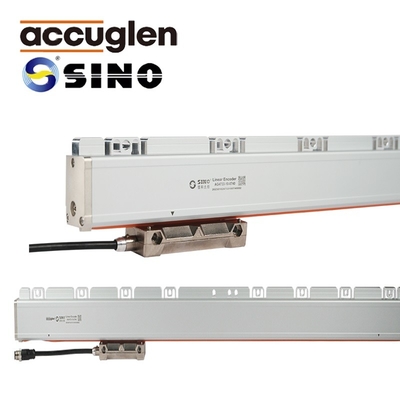

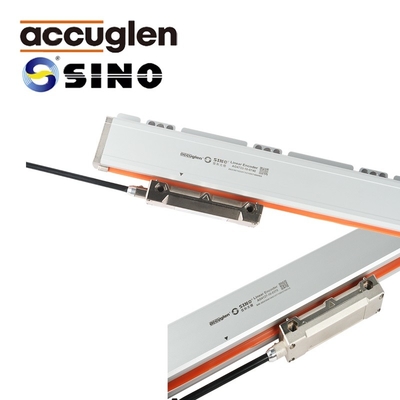

Name: TTL Signal Ka-200 Linear Glass Scale Encoder For Lathe With 5um/1um Resolution
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: KA200 30-360mm
Availability: InStock

Brand Name:	SINO
Model Number:	KA200 30-360mm
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO KA200 30-360mm Linear Grating Ruler

Function:

Lathe Machine /milling Machine

Measure Length (mm):

30-360

Material:

Metal

Resolution:

1μm/5μm

Housing Cross Section（mm）:

16*16

Biggest Speed（m/min）:

Sealing Protection:

IP53

Output:

TTL

Warranty Period:

1 Year

Accuracy:

±3μm/±5μm/±10μm(L<1m; 20±1 ℃)

Reference Point:

One In Each 50mm

Supply Ability:

3000 sets per month

Highlight:

1um Glass Linear Encoder

Lathe Glass Linear Encoder

Product Description

TTL signal ka-200 linear glass scale encoder for lathe with 5um/1um resolution

The following features of our grating ruler:

1. Fast movement, exceeding 60 meters per minute

2. The sliding components of the bearing can perform minimal frictional motion and effective repeated placement along the grating glass.

3. The signal cable adopts multi-layer isolation steel wire mesh and metal soft shell protection, which has good waterproof and anti-interference performance.

4. Due to the use of anodizing technology in aluminum alloy materials, the sturdy chrome plated alloy scales and protruding parts of the body are wear-resistant.

5. By using a grating to locate the position, linear rulers can be used on various digital reading machines to assist in internal processing.

6. Personalized components make the installation, maintenance, and repair of linear encoders very easy, and they are waterproof, dustproof, and have a long lifespan

7. The linear encoder uses a glass precision measurement grating as the measurement reference to ensure high accuracy

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

TTL Signal Ka-200 Linear Glass Scale Encoder For Lathe With 5um/1um Resolution 0

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

TTL Signal Ka-200 Linear Glass Scale Encoder For Lathe With 5um/1um Resolution 1

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

TTL Signal Ka-200 Linear Glass Scale Encoder For Lathe With 5um/1um Resolution 3
