TTL/RS422 Signal Ka Series Linear Glass Scale Encoder With 0.1um/5um/1um Resolution For Lathes

Brand Name:	SINO
Model Number:	KA200/KA300/KA500/KA600/KA700
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO Linear Grating Ruler

Function:

Lathe Machine /milling Machine

Measure Length (mm):

30-360/70-1020/70-470/100-3000/170-1240

Material:

Metal

Resolution:

0.1μm/0.5μm/1μm/5μm

Housing Cross Section（mm）:

16*16/25*34/18*20/30*43/40*42

Biggest Speed（m/min）:

Sealing Protection:

IP53

Output:

TTL/RS422

Warranty Period:

1 Year

Accuracy:

±3μm/±5μm/±10μm(L<1m; 20℃/68°F)

Reference Point:

One In Each 50mm

Supply Ability:

3000 sets per month

Highlight:

RS422 Glass Linear Encoder

0.1um Glass Linear Encoder

TTL Glass Linear Encoder

Product Description

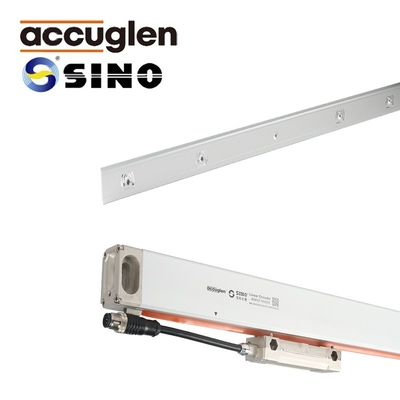

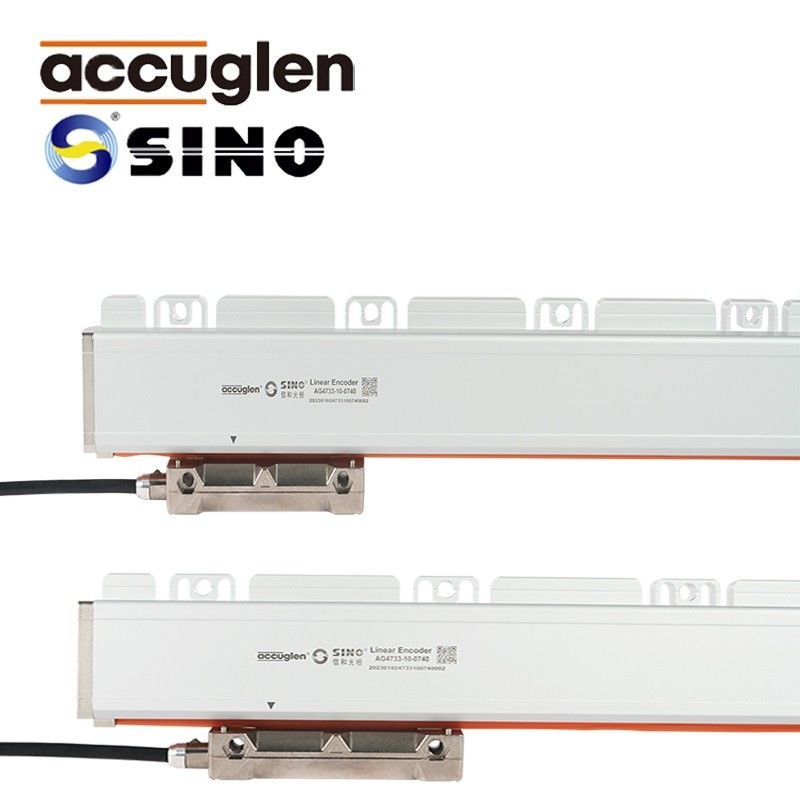

TTL/RS422 Signal Ka Series Linear Glass Scale Encoder With 0.1um/5um/1um Resolution For Lathes

Grating ruler complete set includes:

linear scale, screws, dust cover, operation manual, installation accessories

Model

1.KA-200:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:30mm-360mm,Resolution:1μm/5μm

2.KA-300:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:70mm-1020mm,Resolution:0.1μm/0.5μm/1μm/5μm

3.KA-500:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:70mm-470mm,Resolution:0.5μm/1μm/5μm

4.KA-600:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:1000mm-3000mm,Resolution:0.1μm/0.5μm/1μm/5μm

5.KA-700:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:170mm-1240mm,Resolution:0.1μm/0.5μm/1μm/5μm

Our grating ruler has the following characteristics

1. The reading head has minimal frictional force along the grating ruler glass and moves smoothly and accurately.

2. Ensure accuracy through laser interferometer calibration.

3. IP53 protection, waterproof, oil proof, and dustproof.

4. Fully sealed structure, preventing chips and coolant.

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

TTL/RS422 Signal Ka Series Linear Glass Scale Encoder With 0.1um/5um/1um Resolution For Lathes 0

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

TTL/RS422 Signal Ka Series Linear Glass Scale Encoder With 0.1um/5um/1um Resolution For Lathes 1

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

TTL/RS422 Signal Ka Series Linear Glass Scale Encoder With 0.1um/5um/1um Resolution For Lathes 3
