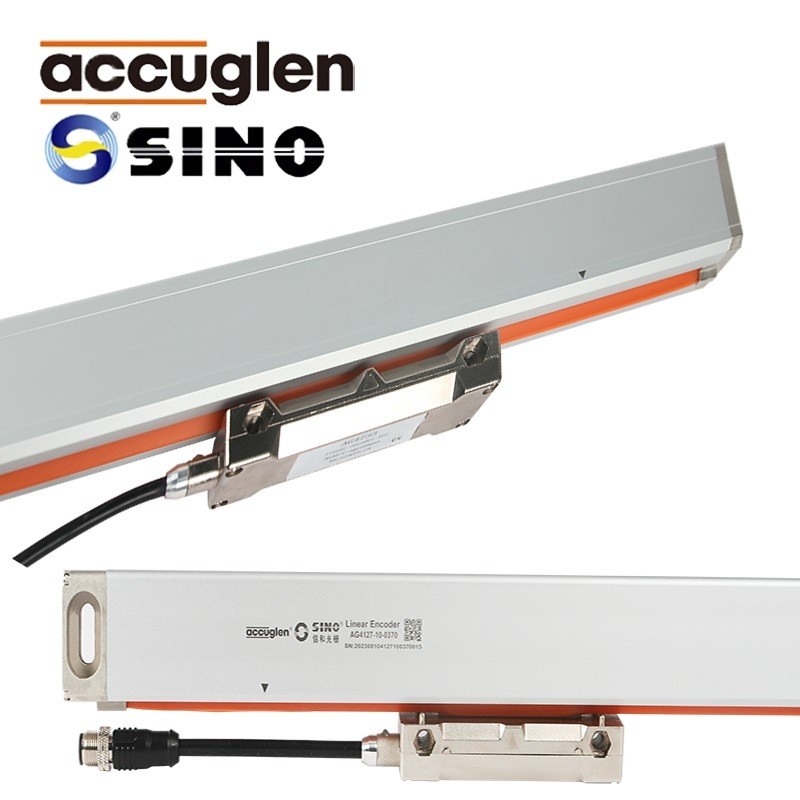

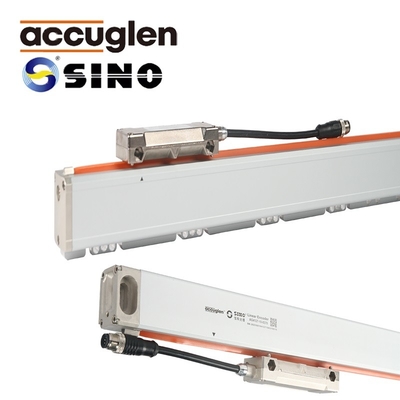

KA Series Linear Encoder Optical Linear Scale Grating Ruler Made In China

Brand Name:	SINO
Model Number:	KA200/KA300/KA500/KA600/KA700
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO Linear Grating Ruler

Function:

Boring Machines/lathes/grinders/machining Centers

Measure Length (mm):

30-360/70-1020/70-470/100-3000/170-1240

Material:

Metal

Resolution:

0.1μm/0.5μm/1μm/5μm

Housing Cross Section（mm）:

16*16/25*34/18*20/30*43/40*42

Biggest Speed（m/min）:

Sealing Protection:

IP53

Output:

TTL/RS422

Warranty Period:

1 Year

Accuracy:

±3μm/±5μm/±10μm(L<1m; 20℃/68°F)

Reference Point:

One In Each 50mm

Supply Ability:

3000 sets per month

Highlight:

Made In China Linear Encoder

KA Series Linear Encoder

Optical Linear Scale Grating Ruler

Product Description

KA Series Linear Encoder Optical Linear Scale Grating Ruler Made In China

Grating ruler complete set includes:

linear scale, screws, dust cover, operation manual, installation accessories

Model

1.KA-200:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:30mm-360mm,Resolution:1μm/5μm

2.KA-300:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:70mm-1020mm,Resolution:0.1μm/0.5μm/1μm/5μm

3.KA-500:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:70mm-470mm,Resolution:0.5μm/1μm/5μm

4.KA-600:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:1000mm-3000mm,Resolution:0.1μm/0.5μm/1μm/5μm

5.KA-700:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:170mm-1240mm,Resolution:0.1μm/0.5μm/1μm/5μm

DESCRIPTION

1. Sports speed: over 60 meters per minute

2. Long distance transmission: can be spliced up to 100 meters

3. The reading head moves along a guide rail with minimal friction on the glass, resulting in excellent product kinetic energy and an increase in the maximum allowable speed and acceleration along the measurement direction

4. The multi-layer insulation network and soft metal protective shell applied to signal cables ensure reliable waterproof performance and good anti-interference performance

5. The anodized aluminum alloy flake body and chrome plated flake end provide excellent anti-corrosion performance.

6. Carefully designed components are easy to install and maintain. Good waterproof and dustproof performance helps with a long lifespan

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

KA Series Linear Encoder Optical Linear Scale Grating Ruler Made In China 0

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

KA Series Linear Encoder Optical Linear Scale Grating Ruler Made In China 1

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

KA Series Linear Encoder Optical Linear Scale Grating Ruler Made In China 3
