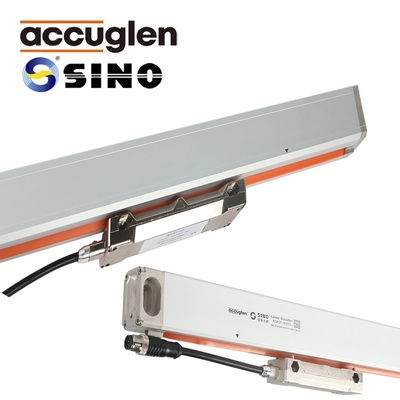

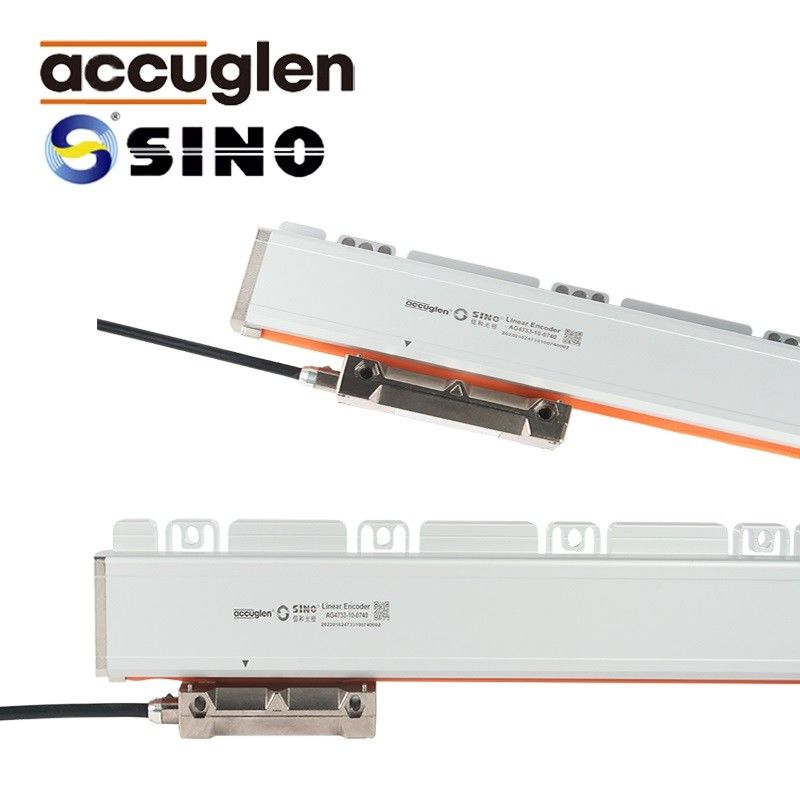

Chinese-Made KA Series Linear Encoder Optical Linear Scale Grating Ruler

Brand Name:	SINO
Model Number:	KA200/KA300/KA500/KA600/KA700
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO Linear Grating Ruler

Function:

Boring Machines/lathes/grinders/machining Centers

Measure Length (mm):

30-360/70-1020/70-470/100-3000/170-1240

Material:

Metal

Resolution:

0.1μm/0.5μm/1μm/5μm

Housing Cross Section（mm）:

16*16/25*34/18*20/30*43/40*42

Biggest Speed:

60(m/min)

Sealing Protection:

IP53

Output:

RS422/TTL

Warranty Period:

1 Year

Accuracy:

±3μm/±5μm/±10μm(L<1m; 20±1℃)

Reference Point:

Every 50 Mm, One

Supply Ability:

3000 sets per month

Highlight:

KA Series Linear Encoder

Optical Linear Scale Grating Ruler

Product Description

Chinese-Made KA Series Linear Encoder Optical Linear Scale Grating Ruler

Complete set of grating rulers includes:

screws, a dust cover, an operation manual, a linear scale, and installation accessories

Model

1.KA-200:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:30mm-360mm,Resolution:1μm/5μm

2.KA-300:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:70mm-1020mm,Resolution:0.1μm/0.5μm/1μm/5μm

3.KA-500:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:70mm-470mm,Resolution:0.5μm/1μm/5μm

4.KA-600:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:1000mm-3000mm,Resolution:0.1μm/0.5μm/1μm/5μm

5.KA-700:Accuracy:±3μm/±5μm/±10μm(L<1m; 20±1 ℃),Measure Length:170mm-1240mm,Resolution:0.1μm/0.5μm/1μm/5μm

DESCRIPTION

1. Sports speed: Reaching 60 m/min
2. Long-distance transmission: up to 100 meters can be split
3. The reading head increases the maximum permitted speed and acceleration along the measurement direction as it travels along a guide rail with little friction on the glass, producing superior product kinetic energy.
4. The signal cables' soft metal protective shell and multi-layer insulating network provide dependable watertight and strong anti-interference performance.
5. The flake end with chrome plating and the anodized aluminum alloy flake body offer superior anti-corrosion performance.
6. Well-crafted parts are simple to install and keep up. Having good dustproof and waterproof properties contributes to a long lifespan.

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover
