Product Details:
|
| Item Name: | Digital Readout Kit SDS200 | System: | SDS200 Digital Readout Display |
|---|---|---|---|
| Axis: | 4 Axis | Display: | Lcd Digital Reading Display |
| Voltage: | AC80-240V / 50-60Hz For Display | Time Display: | Support |
| Usage: | Precision Grinder/Milling Machine | ||
| High Light: | Large LCD Screen Digital Readout Display,Linear Glass Scale Digital Readout Display,4 Axis Digital Readout Display |
||

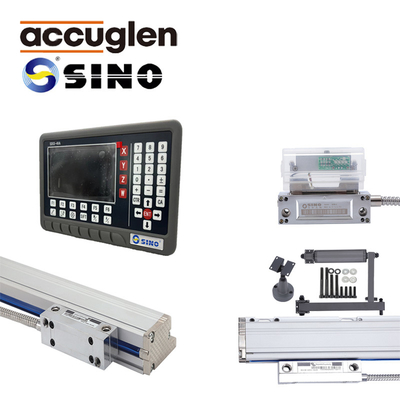

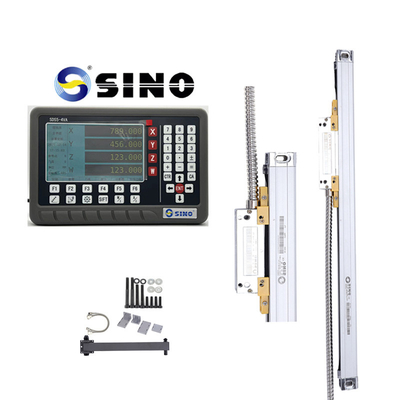

SINO4 Axis Large LCD Screen Multifunctional Digital Readout Display KA Linear Glass Scale
SINO digital display system is a digital display device used for industrial equipment such as machine tools. SINO is a professional company that produces precision measurement tools and digital reading systems. It aims to provide accurate and reliable measurement readings for a series of machine tools, including milling machines, lathes, grinders, etc. It is crucial to ensure that the equipment can be frequently used in the metal processing and woodworking industries by detecting the operating status and various process parameters of production equipment in industrial production, with precise positioning and measurement being crucial. At the same time, it has multiple language switches and can be used by users from multiple countries.
Measurement
The SDS200 model
Voltage input: AC80-240V
Signal input: TTL
Material: Cover made of metal
Plug: US, UK, EU, AU, etc.
Specifications for Sino Linear scale encoder
The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.

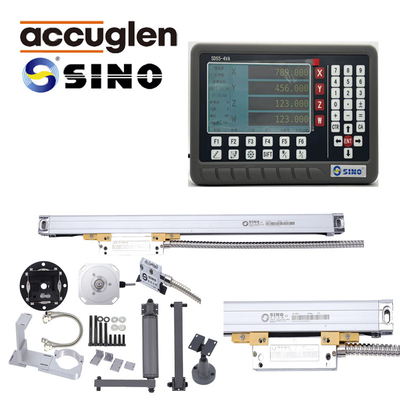

Package list:
| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |

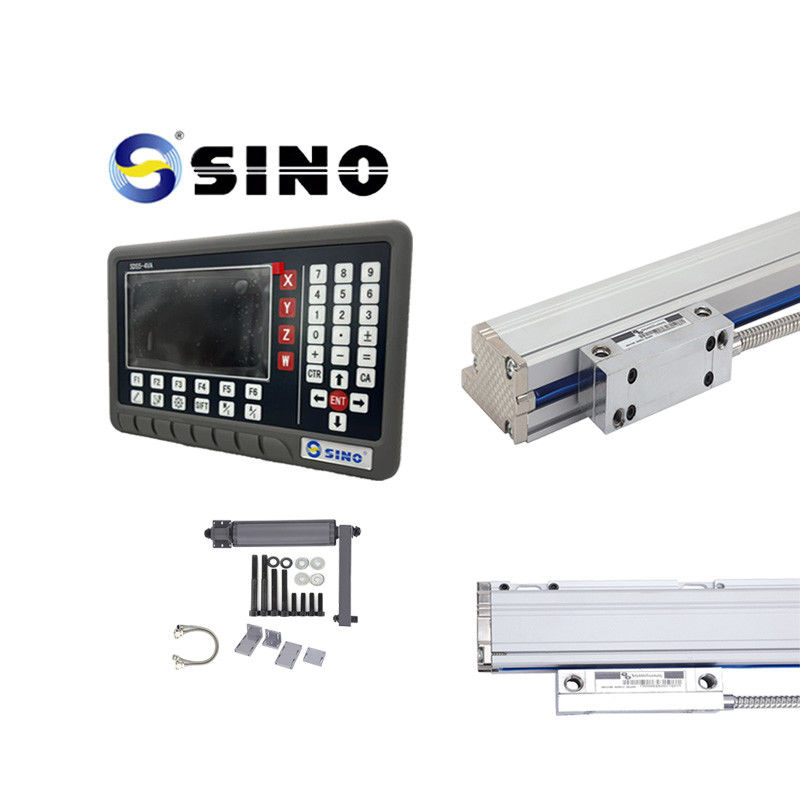

Detail Information of SDS200 digital readout systems
Pin Description:
