SINO Single Axis SDS3-1 Digital Readout Meter And Linear Scale Grating Ruler For Milling/Lathe

Brand Name:	SINO
Model Number:	SDS3-1, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS3-1 Digital Display Controller For Single Axis Digital Readout Counter

Number Of Axis:

One Axis DRO System

Input Signal:

TTL / RS422

Voltage:

Digital Display Controller: AC100-240V / 50-60Hz

Suitable For:

Milling Lathe, Boring Machine, EDM Machine

Resolution:

1um,5um,0.5um

Weight:

2.5KG

Connect:

KA300, KA600, KA500, KA200

Function:

For Milling Machine

Material:

Metal

Sealing Protection:

IP67

After Sales Service:

1 Year Warranty

Supply Ability:

1000 pcs per month

Highlight:

Lathe Digital Readout Meter

Linear Scale Digital Readout Meter

Grating Ruler Digital Readout Meter

Product Description

SINO Single Axis Sds3-1 Digital Readout Meter And Linear Scale Grating Ruler For Milling/Lathe

SDS3-1 is a small size DRO that has strong operation functions special for single axis measurement and position control.SINO digital display system is a digital display device used for industrial equipment such as machine tools. SINO is a professional company that produces precision measurement tools and digital reading systems. It aims to provide accurate and reliable measurement readings for a series of machine tools, including milling machines, lathes, grinders, etc. It is crucial to ensure that the equipment can be frequently used in the metal processing and woodworking industries by detecting the operating status and various process parameters of production equipment in industrial production, with precise positioning and measurement being crucial. At the same time, it has multiple language switches and can be used by users from multiple countries.

Description:

The SDS3-1 DRO is developed with a strong function to allow users to measure a single axis.

The SDS3 DRO is smallest; it is designed for clients to measure the single axes and possesses powerful functions.

This one axis model allow up to 1 linear encoder to be connected. Additional interfaces are available to combine/sum two encoders into a single console input or to convert the input to suit other manufacturers’ equipment. Please see the encoder compatibility guide below.

Specifications of SINO SDS3-1 digital readout system + Grating Ruler

Specification

Item: SINO SDS3-1 Digital Readout System

Type: Luxury Type DRO

Input: One axis

Iutput Signal: TTL/RS-422

Housing: Metal

Application: Glass scales for manual or CNC lathes, milling, drilling, and grinding equipment, and EDM

Uage: Position Measuring Instrument for single Axis grating scale

Certification: CE,ROHS,ISO9001

Sealing Protection Class: IP67

Feature: Sturdy and durable, simple to install, and user-friendly

Machinery Test Report: Provided

Feature:

Small in size, easy to install,friendly match with different types of machine.The keys are closed micro-motion metal

membrane switches, the shape of the keys on the panel is designed to be square.Operation height in accord with

human engineering,more pronounced operationg feel, more efficiently and comfortably

Packaging List :

1 PC	3 Axis LED digital readout SDS3-1
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

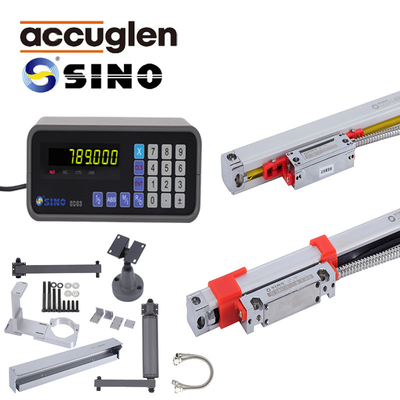

SINO Single Axis SDS3-1 Digital Readout Meter And Linear Scale Grating Ruler For Milling/Lathe 0

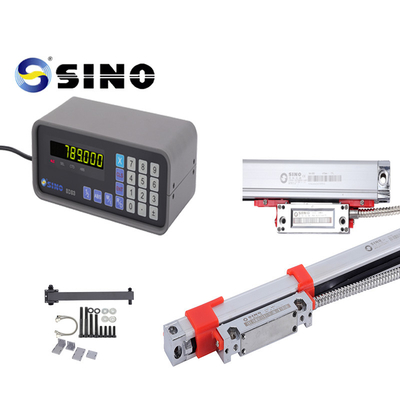

SINO Single Axis SDS3-1 Digital Readout Meter And Linear Scale Grating Ruler For Milling/Lathe 1

The rack in the picture is optioned, not standard product.

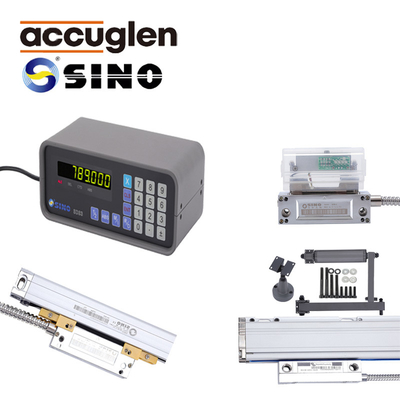

SINO Single Axis SDS3-1 Digital Readout Meter And Linear Scale Grating Ruler For Milling/Lathe 2
