Product Details:
|
| Item Name: | Digital Readout Kit SDS5-4VA | System: | SDS200 Digital Readout Display |
|---|---|---|---|
| Resolution: | 0.5/1/5μm | Voltage: | AC80-240V / 50-60Hz |
| Usage: | Precision Grinder/electrical Discharge Machining | After Sales Service: | 1 Year Warranty |
| Dro Material: | Metal Case | Input Signal: | TTL / RS422 |
| Max Of Measuring Speed: | 60m/min | ||
| High Light: | Digital Display Linear Encoder,Sds5-4va Linear Encoder,Multiple Languages Linear Encoder |
||

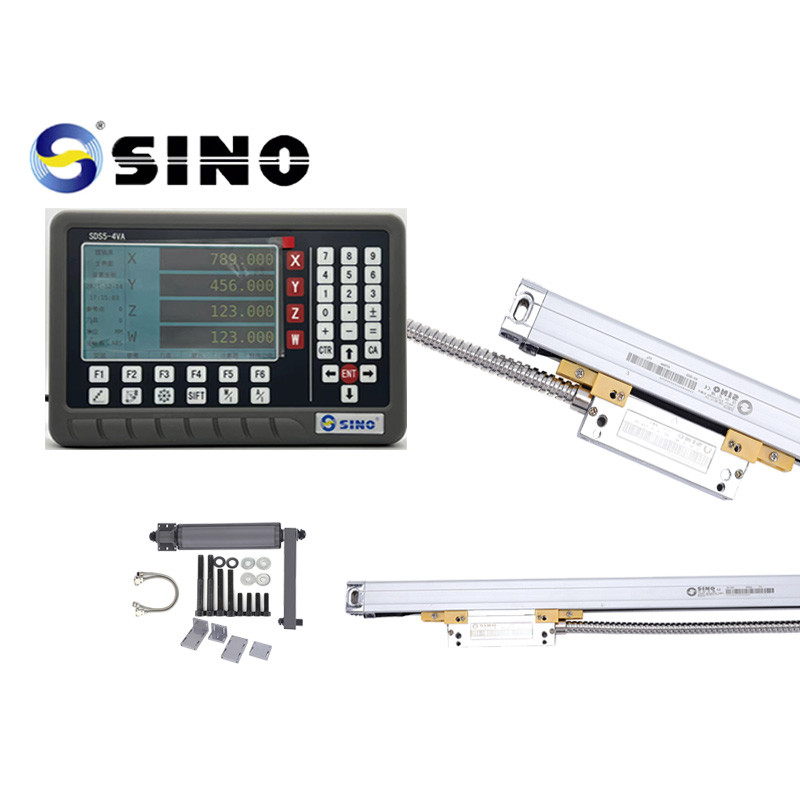

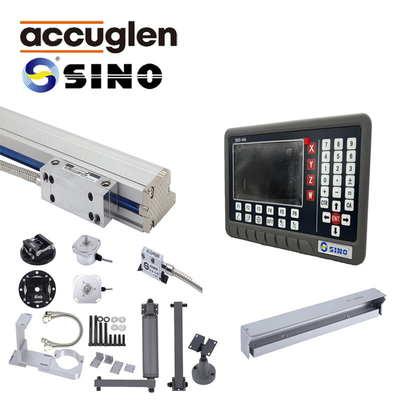

Linear Encoder And Sds5-4va Digital Display Table Supporting Multiple Languages
Industrial equipment such as machine tools use a digital display system called SINO. Will bring better work efficiency. Its goal is to provide accurate and reliable measurement readings for a range of machine tools, including milling machines, lathes, and grinders. In industrial production, identifying the operating status of production equipment and various process parameters is crucial. Accurate installation and measurement are essential to ensure that the equipment is suitable for frequent use in the metal processing and metal processing industry, and to improve the integrity and productivity of processing. It provides users from different countries/regions with multiple language switching options, effectively reducing work redundancy and providing convenient operation methods.
Measurement
The SDS200 model
Voltage input: AC80-240V
Signal input: TTL
Material: Cover made of metal
Plug: US, UK, EU, AU, etc.
Specifications for Sino Linear scale encoder
The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.
Package list:
| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
