Product Details:
|
| Item Name: | Digital Readout Kit SDS5-4VA | Ambient Temperature: | -10~60℃ |
|---|---|---|---|
| Resolution: | 0.1/0.5/1/5μm | Voltage: | AC80-240V / 50-60Hz |
| Usage: | Lathes/electrical Discharge Machining | After Sales Service: | 1 Year Warranty |
| Dro Material: | Metal Case | Input Signal: | TTL / RS422 |
| Sealing Protection: | IP53 | ||
| High Light: | Multifunctional Linear Encoder,5-4VA Linear Encoder,Sino Linear Encoder |
||

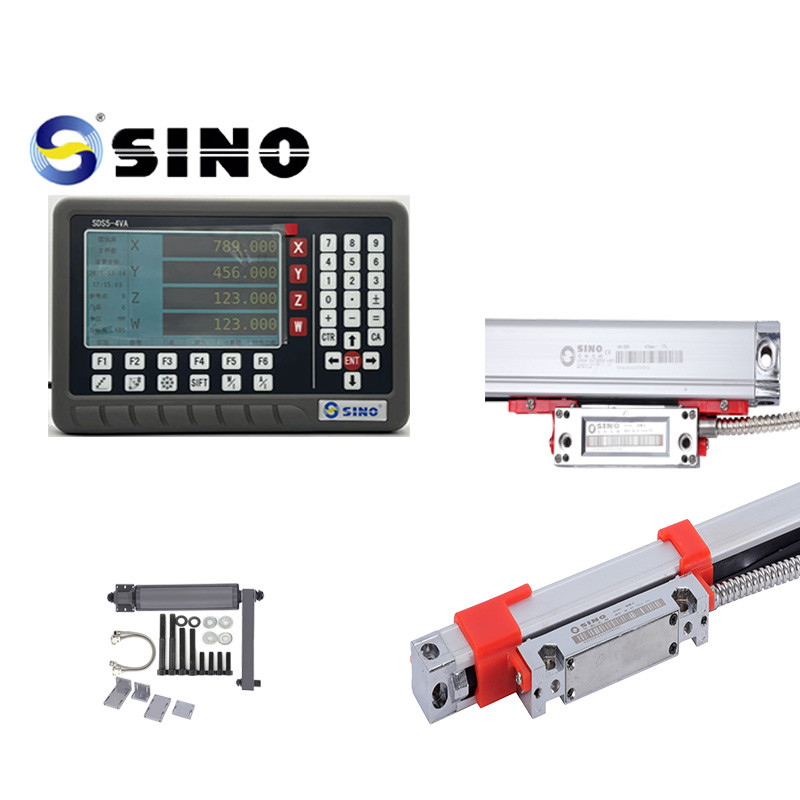

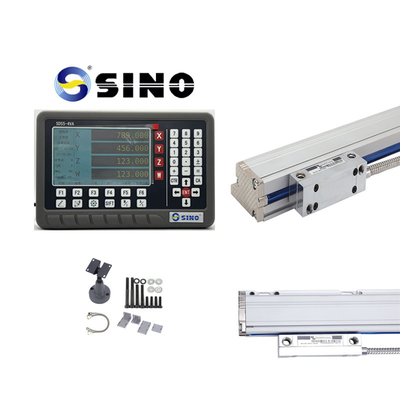

Ka Series Sino Linear Encoder And Multifunctional Sds5-4va Digital Display Table
SINO is the name of the digital display system used by industrial machinery like machine tools. will result in increased productivity. Its objective is to deliver precise and trustworthy measurement readings for various machine tools, such as grinders, lathes, and milling machines. Determining the numerous process parameters and the operational status of production equipment is critical in industrial production. To guarantee that the equipment is appropriate for regular use in the metal processing industry and to enhance the integrity and productivity of processing, precise installation and measurement are crucial. It reduces work redundancy and offers easier operating techniques by giving users from different locations and countries multiple language switching possibilities.
Measurement
The SDS200 model
Voltage input: AC80-240V
Signal input: TTL
Material: Cover made of metal
Plug: US, UK, EU, AU, etc.
Specifications for Sino Linear scale encoder
The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.
Package list:

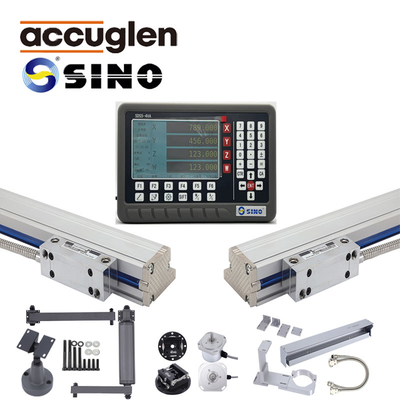

| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
