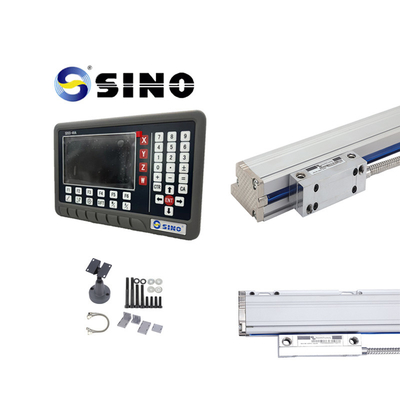

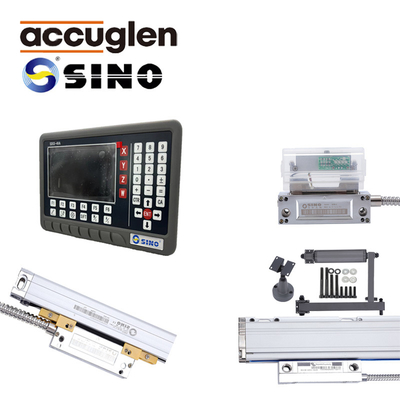

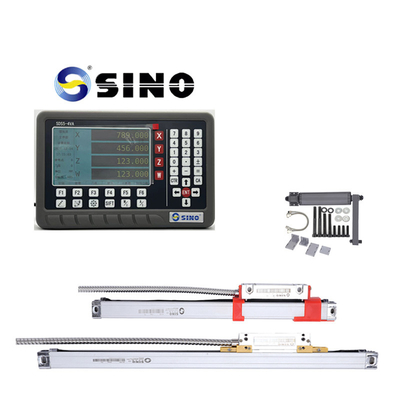

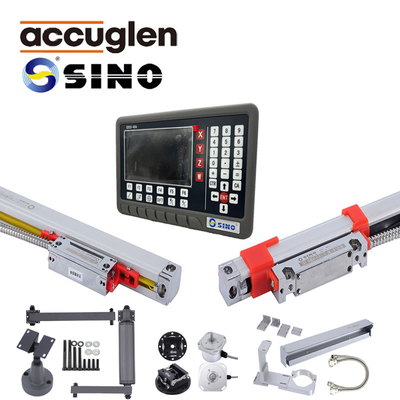

Sino Linear Encoder Of The Ka Series With Multipurpose SDS 5-4VA Digital Display Table

Brand Name:	SINO
Model Number:	SDS 5-4VA, KA300, KA500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

Digital Readout Kit SDS5-4VA

Axis:

4 Axis

Resolution:

0.1/0.5/1/5μm

Voltage:

AC80-240V / 50-60Hz

Usage:

Lathes/electrical Discharge Machining

Warranty Period:

1 Year

Plug:

US, UK, EU, AU, Etc.

Input Signal:

TTL / RS422

Sealing Protection:

IP53

Supply Ability:

3000 sets per month

Highlight:

5-4VA Linear Encoder

Digital Display Linear Encoder

Multipurpose Linear Encoder

Product Description

Sino Linear Encoder Of The Ka Series With Multipurpose Sds5-4va Digital Display Table

The digital display system utilized by industrial machinery, such as machine tools, is known by the term SINO, and it will boost productivity. Its goal is to provide accurate and reliable measurement readings for a range of machine tools, including milling machines, lathes, and grinders. In industrial production, it is crucial to ascertain the many process parameters and the state of operation of production equipment. Precise installation and measurement are essential to ensure that the equipment is suitable for routine operation in the metal processing industry and to improve processing integrity and productivity. By providing several language switching options to customers from different regions and countries, it lowers task redundancy and facilitates smoother operating procedures.

Measurement

The SDS200 model

Voltage input: AC80-240V

Signal input: TTL

Material: Cover made of metal

Plug: US, UK, EU, AU, etc.

Specifications for Sino Linear scale encoder

The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.

Package list:

Item name	4 axes digital display unit
Digital Readout (DRO)	SDS200
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Others	Cable / Screws / Manual

Detail Information of SDS200 digital readout systems

Sino Linear Encoder Of The Ka Series With Multipurpose SDS 5-4VA Digital Display Table 1

Pin Description:

Sino Linear Encoder Of The Ka Series With Multipurpose SDS 5-4VA Digital Display Table 2
