Application Of SDS2MS Dual Axis Linear Glass Scale On Sino Digital Display

Brand Name:	SINO
Model Number:	SDS2MS
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE, RoHS

Name:

SDS 2MS Digital DRO 2 Axis KA300 Magnetic Scale System With Linear Error Correction, Nonlinear Error Cor

Number Of Axis:

2 Axis DRO

Application:

Especially Suitable For Milling, Lathes, Grinding, And Electrical Discharge Machining

Signal:

TTL / RS4221

Shipping Time:

10–14 Days Following Full Payment

Ambient Temperature:

-10~60℃

After Sales Service:

1 Year Warranty

Voltage Range:

AC85-250V / 50-60Hz

Usage:

Especially Suitable For Milling And Lathes

Supply Ability:

1000 pcs per month

Highlight:

Dual Axis Linear Glass Scale

Sino Digital Display Linear Glass Scale

Product Description

Application Of Sds2ms Dual Axis Linear Glass Scale On Sino Digital Display

The SDS 2MS AC 100-240V digital DRO 2-axis KA300 linear glass scale grating ruler system has the following characteristics:

Dual-axis DRO: Using this kit, you can concurrently watch and manage the machine's movement along two axes, such as the X and Y axes in a milling machine. This makes it possible for you to clearly assess the equipment's operational state.
Magnetic ruler encoder system: The KA300 linear ruler encoder system uses magnetic technology to provide accurate and reliable readings. Position feedback and work progress are continuously monitored by the magnetic balance installed on the machine shaft and the DRO display device.

Enhanced Components:

1.One is linear error correction.

2.Nonlinear error correction is the second.

3. Turn off the memory.

4. There is no change in tempo.

The Digital DRO 2 axis Readout details

1. An AC voltage range of 50 to 60 Hz, 85 to 250 volts.

2. 15 watts of power were consumed at 25 volts.

3. The number should be denoted by a coordinate, two coordinates, and three coordinates.

4. Display symbols that produced data information by signing eight meters words and seven displays (two or three axes).

5. Net Weight: 1.3 kilos/2.9 lbs.

6. The input signal is a simple TTL interface with an open collector output signal conforming to EIA-422 and a programmable controller.

Packaging List :

1 PC	2 Axis digital readout SDS2MS
1 PC	Transparent cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

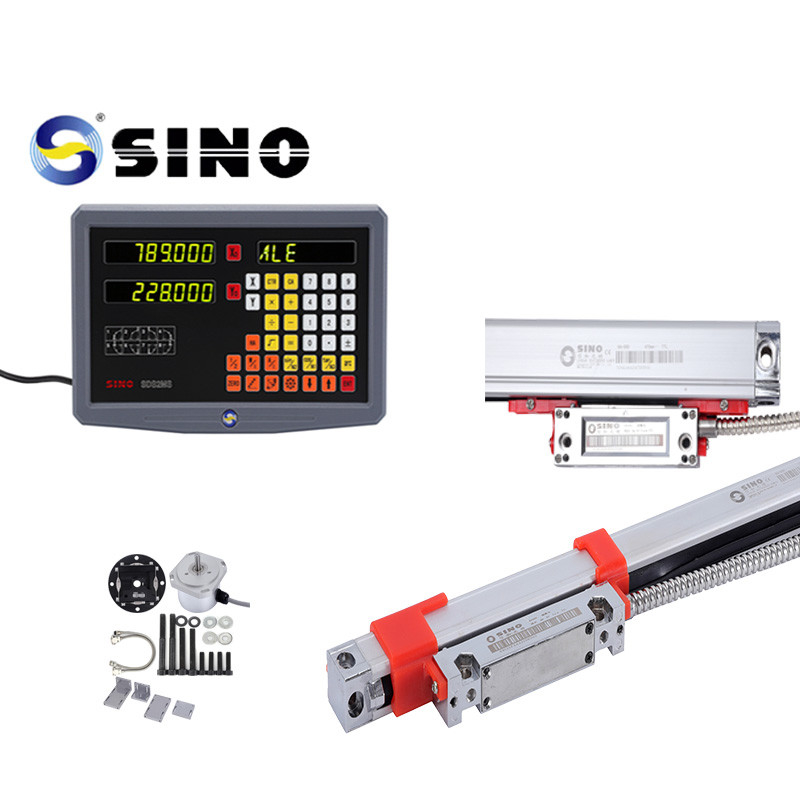

Application Of SDS2MS Dual Axis Linear Glass Scale On Sino Digital Display 0

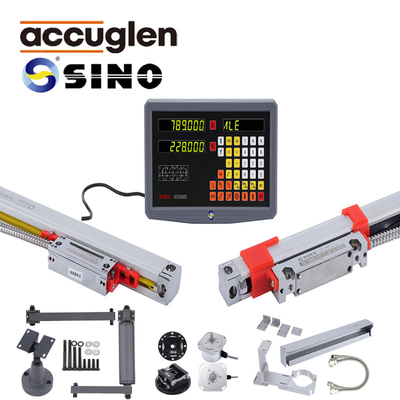

Application Of SDS2MS Dual Axis Linear Glass Scale On Sino Digital Display 1

The rack in the picture is optioned, not standard product.

Application Of SDS2MS Dual Axis Linear Glass Scale On Sino Digital Display 2
