Product Details:
|
| Name: | SDS 2MS Digital DRO 2 Axis KA300 Magnetic Scale System With Linear Error Correction, Nonlinear Error Cor | Input Signal: | TTL |
|---|---|---|---|
| Application: | Especially Suitable For Milling, Lathes, Grinding, And Electrical Discharge Machining | Sealing Protection: | IP53 |
| Shipping Time: | 10–14 Days Following Full Payment | Resolution: | 0.5/1/5μm |
| Warranty Period: | 1 Year | Ambient Temperature: | -10~60℃ |
| Max Of Measuring Speed: | 60m/min | ||
| High Light: | Linear Grating Ruler Digital Display Meter,Lathes Digital Display Meter,Precision Grinders Digital Display Meter |
||
SDS2MS Digital Display Meter And Ka-300 Linear Grating Ruler For Lathes And Precision Grinders
The SDS 2MS AC 100-240V digital DRO 2-axis KA300 linear glass scale grating ruler system comes with the following features:
Dual-axis DRO: This kit allows you to see and manage the machine's movement in two axes at the same time, such as the X and Y axes of a milling machine. This makes it easier for you to assess how well the equipment is operating.
Magnetic ruler encoder system: The KA300 linear ruler encoder system uses magnetic technology to provide accurate and reliable readings. Position feedback and work progress are continuously tracked by the magnetic balance mounted on the machine shaft and the DRO display device.
Enhanced Components:
1.One is linear error correction.
2.Nonlinear error correction is the second.
3. Turn off the memory.
4. There is no change in tempo.
The Digital DRO 2 axis Readout details
1. An AC voltage range of 50 to 60 Hz, 85 to 250 volts.
2. 15 watts of power were consumed at 25 volts.
3. The number should be denoted by a coordinate, two coordinates, and three coordinates.
4. Display symbols that produced data information by signing eight meters words and seven displays (two or three axes).
5. Net Weight: 1.3 kilos/2.9 lbs.
6. The input signal is a simple TTL interface with an open collector output signal conforming to EIA-422 and a programmable controller.
| 1 PC | 2 Axis digital readout SDS2MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

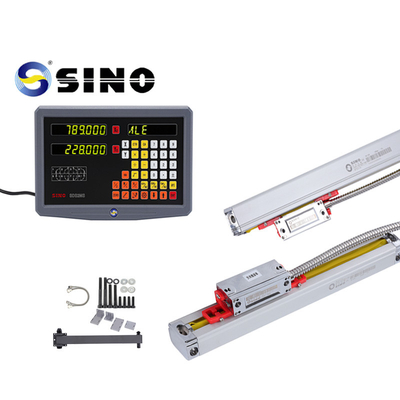

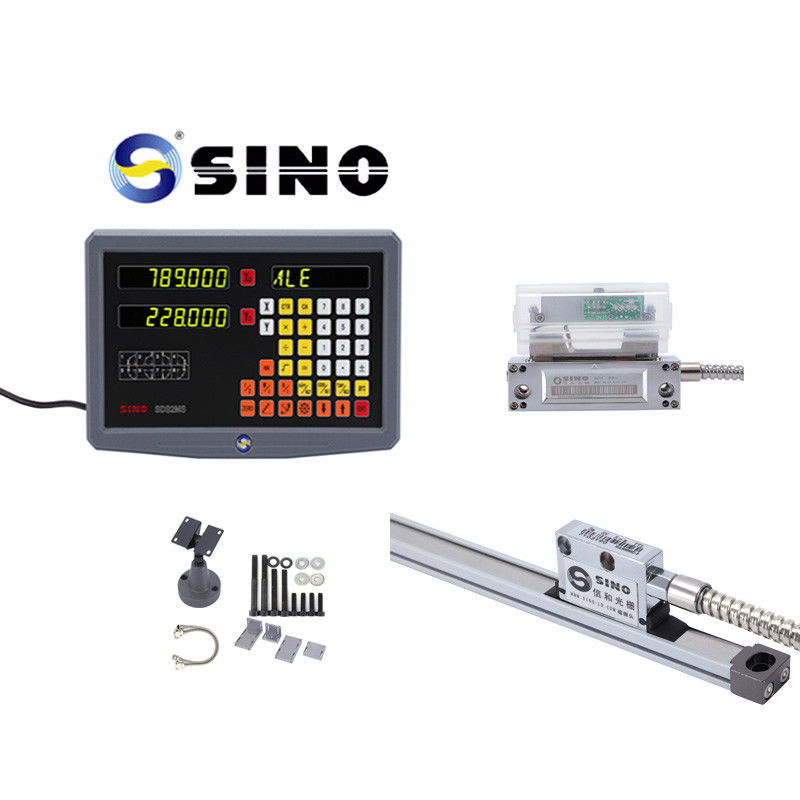

Product image /photos:
The rack in the picture is optioned, not standard product.
