Product Details:
|
Name: | SDS 2MS Digital DRO 2 Axis KA300 Magnetic Scale System With Linear Error Correction, Nonlinear Error Cor | Dro Material: | Metal Case |
---|---|---|---|
Application: | Especially Suitable For Milling, Lathes, Grinding, And Electrical Discharge Machining | Sealing Protection: | IP53 |
Shipping Time: | 10–14 Days Following Full Payment | Resolution: | 0.5μm/1μm/5μm |
Warranty Period: | 12 Mouths | Axis: | 2 Axis |
Color: | Silvery | ||
Highlight: | SDS2MS Digital Display Meter,Linear Grating Ruler Digital Display Meter,Ka-300 Digital Display Meter |
SDS2MS lED Digital Display Meter And Ka-300 Linear Grating Ruler Used In Lathes
The following characteristics are included with the SDS 2MS AC 100-240V digital DRO 2-axis KA300 linear glass scale grating ruler system:
Dual-axis DRO: With this kit, you may simultaneously view and control the movement of a machine in two axes, such as the X and Y axes of a milling machine. This facilitates your evaluation of the equipment's performance.
Magnetic ruler encoder system: To produce precise and trustworthy readings, the KA300 linear ruler encoder system makes use of magnetic technology. The DRO display device and the magnetic balance fixed on the machine shaft continuously monitor position feedback and job progress.
Enhanced Components:
1.One is linear error correction.
2.Nonlinear error correction is the second.
3. Turn off the memory.
4. There is no change in tempo.
The Digital DRO 2 axis Readout details
1. An AC voltage range of 50 to 60 Hz, 85 to 250 volts.
2. 15 watts of power were consumed at 25 volts.
3. The number should be denoted by a coordinate, two coordinates, and three coordinates.
4. Display symbols that produced data information by signing eight meters words and seven displays (two or three axes).
5. Net Weight: 1.3 kilos/2.9 lbs.
6. The input signal is a simple TTL interface with an open collector output signal conforming to EIA-422 and a programmable controller.
1 PC | 2 Axis digital readout SDS2MS |
1 PC | Transparent cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

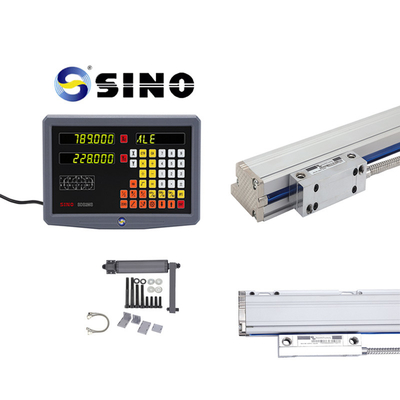

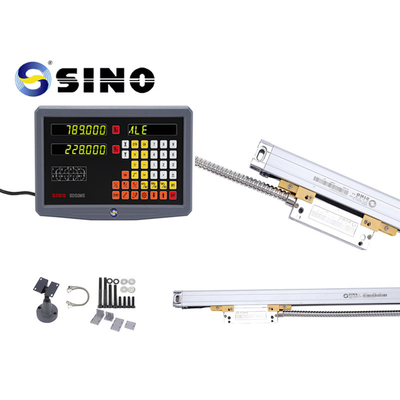

Product image /photos:
The rack in the picture is optioned, not standard product.
