SDS3 Digital Display Meter And Grating Ruler For Assisting In The Expandable Height Detection Of Lathes

Brand Name:	SINO
Model Number:	SDS3-1, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS3-1 Digital Display Controller For Single Axis Digital Readout Counter

Number Of Axis:

One Axis DRO System

Input Signal:

TTL / RS422

Voltage Range:

AC100-240V / 50-60Hz

Application:

Especially Suitable For Milling And Lathes

Max Of Measuring Speed（m/min）:

Display:

LED Display

Sealing Protection:

IP67

After Sales Service:

1 Year Warranty

Resolution:

0.5/1/5μm

Supply Ability:

1000 pcs per month

Highlight:

Grating Ruler SDS3 Digital Display Meter

Expandable Height Digital Display Meter

Product Description

SDS3 Digital Display Meter And Grating Ruler For Assisting In The Expandable Height Detection Of Lathes

SDS3-1 is a potent little DRO that works well for position control and single axis measurement. Precise measuring tools and digital reading systems are made by the reputable SINO corporation, which can make metal production easier. Its objective is to deliver precise and trustworthy measurement readings for various machine tools, such as grinders, lathes, and milling machines. Determining the numerous process parameters and the operational status of production equipment is critical in industrial production. To guarantee that the equipment is appropriate for repeated use in the metal processing industry, precise installation and measurement are especially crucial.

Description:

Strong functionality enables users to measure a single axis with the SDS3-1 DRO.
The SDS3 DRO is the smallest; it has strong functions and is made for clients to measure only one axis.
You can connect up to one linear encoder to this one-axis model. There are other connections available to aggregate or combine two encoders into a single console input or to change the input to work with equipment from different manufacturers. Please refer to the compatibility guide for encoders below.

Specifications of SINO SDS3-1 digital readout system + Grating Ruler

Specification

Item: SINO SDS3-1 Digital Readout System

Type: Luxury Type DRO

Input: One axis

Iutput Signal: TTL/RS-422

Housing: Metal

Application: Glass scales for manual or CNC lathes, milling, drilling, and grinding equipment, and EDM

Uage: Position Measuring Instrument for single Axis grating scale

Certification: CE,ROHS,ISO9001

Sealing Protection Class: IP67

Feature: Sturdy and durable, simple to install, and user-friendly

Machinery Test Report: Provided

Feature:

Small in size, easy to install,friendly match with different types of machine.The keys are closed micro-motion metal

membrane switches, the shape of the keys on the panel is designed to be square.Operation height in accord with

human engineering,more pronounced operationg feel, more efficiently and comfortably

Packaging List :

1 PC	3 Axis LED digital readout SDS3-1
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

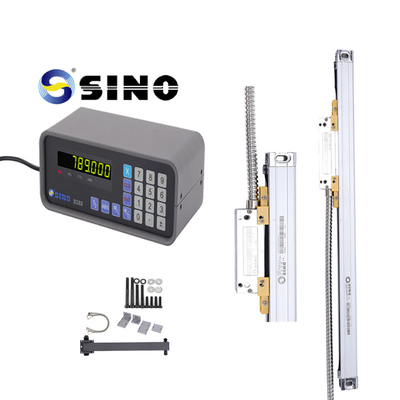

SDS3 Digital Display Meter And Grating Ruler For Assisting In The Expandable Height Detection Of Lathes 0

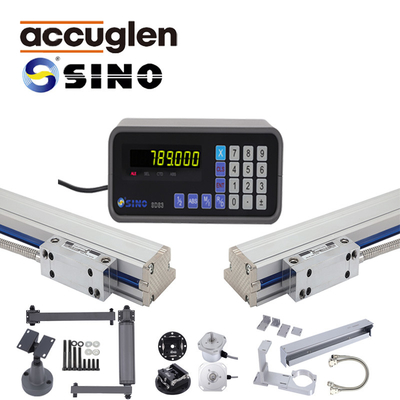

SDS3 Digital Display Meter And Grating Ruler For Assisting In The Expandable Height Detection Of Lathes 1

The rack in the picture is optioned, not standard product.

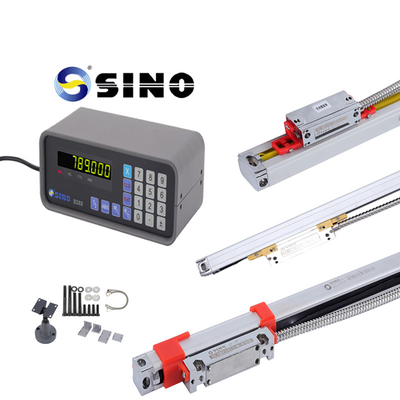

SDS3 Digital Display Meter And Grating Ruler For Assisting In The Expandable Height Detection Of Lathes 2
