A brief introduction to SINO SDS2-3VA 3-axis DRO digital readout system:

The graphics function is made easier to utilize by these characteristics. It is the first facility in China to use a DRO system with a 16- and 32-bit calculator, and it has one of the highest input frequencies in the world, reaching up to 5 MHZ with A/B.

The SINO SDS2-3VA is a 3-axis digital readout meter that is compatible with the KA300 glass linear ruler and supports the TTL/RS422 signal. This digital readout meter is designed to accurately display and measure the position of machine tool axes in various applications. The KA300 glass linear ruler provides precise and reliable position feedback, while the TTL/RS422 signal ensures fast and reliable communication between the ruler and the readout meter.

Precise placement: By guaranteeing exact measurement and placement of the machine tool axes, the SINO SDS2-3VA digital readout meter produces accurate results for machining operations.
Glass Linear Ruler KA300: This ruler provides dependable position feedback in even the most demanding industrial settings because to its remarkable stability and longevity.
Fast and dependable contact with the KA300 glass linear ruler is ensured by the digital readout meter's compatibility for both TTL and RS422 signals.
User-Friendly Interface: It is simple to read and understand position information with the digital readout meter's user-friendly interface, which has clear numerical displays.
Versatile Configuration: With three axes supported by the system, users can measure and track the location of several machine tool axes at once.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.

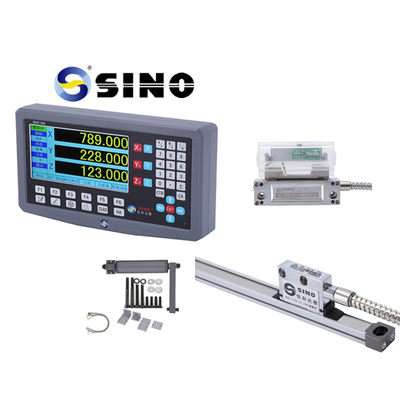

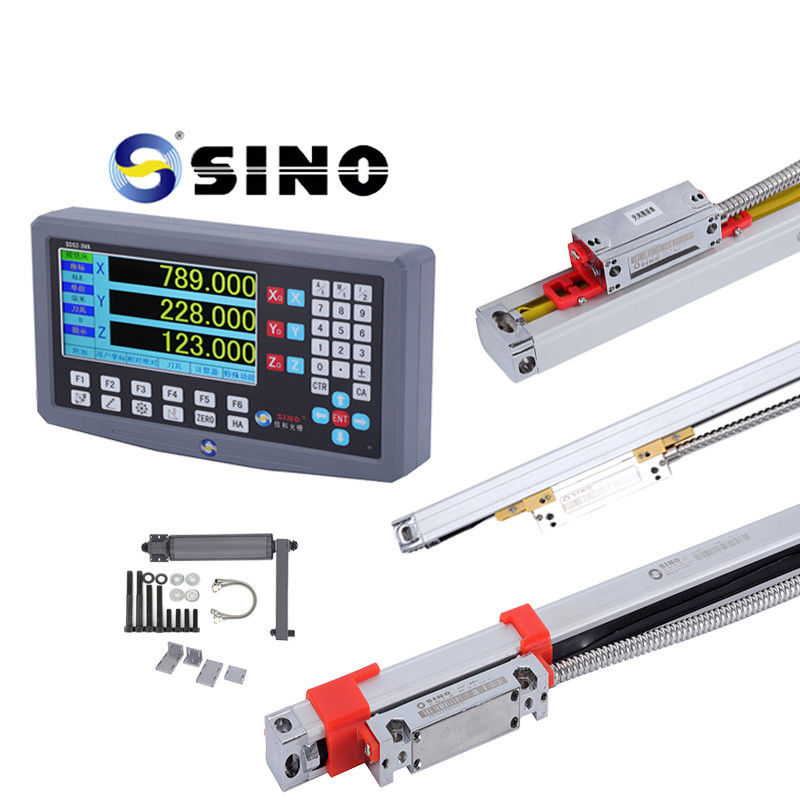

Product image /photos:

The rack in the picture is optioned, not standard product.
