SDS2-3VA Digital Display Meter Specifically Designed For High-Precision Metal Industry And Its Dedicated Grating Ruler

SDS2-3VA Digital Display Meter Specifically Designed For High-Precision Metal Industry And Its Dedicated Grating Ruler

A brief introduction to SINO SDS2-3VA 3-axis DRO digital readout system:

SINO SDS2-3VA is a three-axis digital reading meter that is compatible with KA300 glass linear scales and supports TTL/RS422 signals. This digital reading device is designed to accurately display and measure the position of machine tool shafts in various applications., The TTL/RS422 signal ensures fast and reliable communication between the scale and the reading meter.

Accurate positioning: The KA300 glass linear ruler can provide precise and reliable position feedback to ensure the precise measurement and positioning of the machine tool axis, providing accurate results for machining operations.

Glass straightedge ruler KA300: Even in the most demanding situations, this ruler can provide reliable position feedback

These features make graphic functionality easier to use. It is the first device in China to use a DRO system with 16 bit and 32-bit calculators. It is one of the devices with the highest input frequency in the world, and can reach 5MHz through a/B.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.

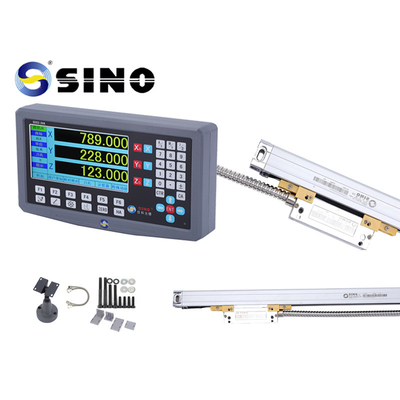

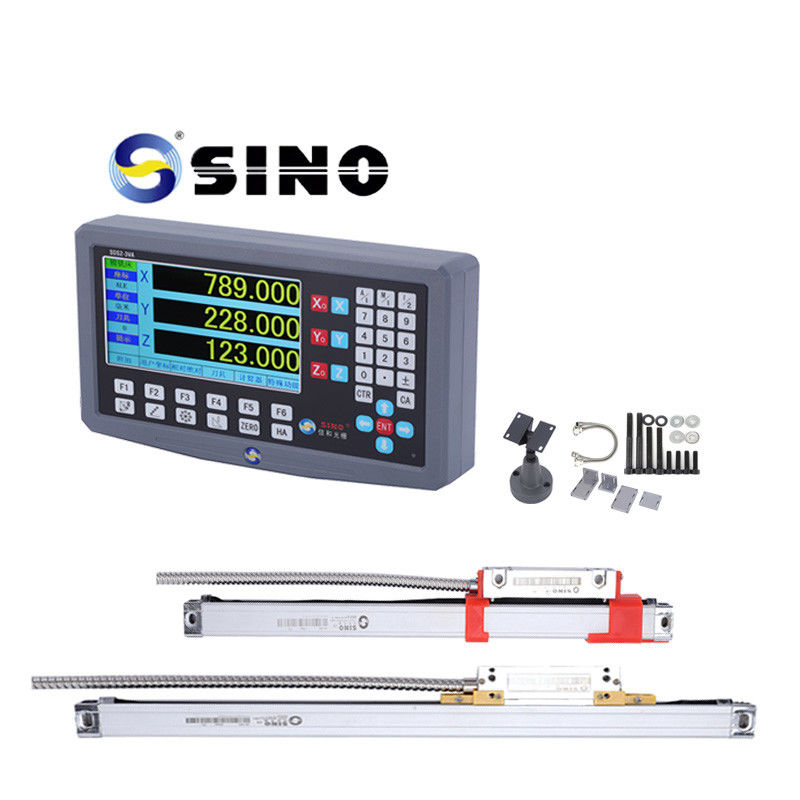

Product image /photos:

The rack in the picture is optioned, not standard product.
