Utilizing the most latest 16 bit SCM technology, the SDS6-2V digital readout is an all-purpose DRO that can replace any kind of basic or specific function needed by the SDS2 series.

Basic SDS6-2V Digital Readout Functions

Auxiliary Zero Position Function for 200 Points

Middle Split Action

Display of "mm/inch" conversion

Diameter/Radius Switch Display

Compensation for Segmented Errors

Payment for Linear Mistakes

Memory for Power Interruptions

Bedtime Switch

Calculations in mathematics

Optional RS-232-C interface

Sino Digital readout system SDS6-2V DRO's improved functions

Functions of Machining

PCD circumferential division (applicable to spark testers and milling machines)

Function for cutting involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

Specifications :

The DRO SDS6-2V is a dual axis digital reader with multiple functions. The system may adjust to different processing requirements by adjusting its settings. It can calculate arcs, drill perpendicular to straight lines, drill at equal intervals around the circle, process surfaces with angles, measure tapers, compute angles, and apply digital filters, among many other visual processing operations. The utilization of visual functionality is simplified by these features. Using 16- and 32-bit calculators in the DRO system, it is the first factory in China to do so. The DRO system boasts the highest a/B ratio in the world, with an input frequency of up to 5MHz.

Model No:

SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function

Feature:
Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)

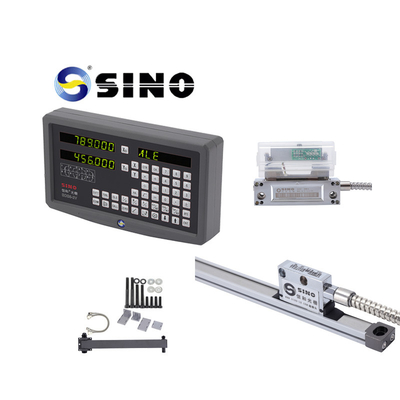

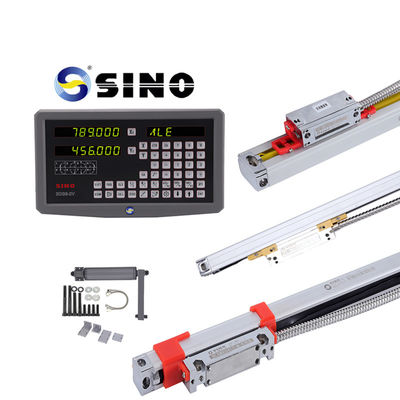

Product image /photos:

The rack in the picture is optioned, not standard product.
