Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Suitable For: | Turning, Drilling, Electro-discharge Machining |
|---|---|---|---|
| Color: | Silvery | Display: | LED |
| Warranty Period: | 365 Days | Voltage: | 50-60Hz, AC 100-240V |
| Number Of Axes: | 2 Axis | Resolution: | 0.5/1/5μm |
| Effective Range: | 30~3000mm | ||
| High Light: | Milling Linear Glass Grating ruler,Grinding Linear Glass Grating ruler |
||
Convenient 2-Axis SDS6-2V Dro And KA Linear Glass Grating Rulers On Milling And Grinding Machines
Utilizing the most latest 16 bit SCM technology, the SDS6-2V digital readout is an all-purpose DRO that can replace any kind of basic or specific function needed by the SDS2 series.
Basic SDS6-2V Digital Readout Functions
Auxiliary Zero Position Function for 200 Points
Middle Split Action
Display of "mm/inch" conversion
Diameter/Radius Switch Display
Compensation for Segmented Errors
Payment for Linear Mistakes
Memory for Power Interruptions
Bedtime Switch
Calculations in mathematics
Optional RS-232-C interface
Sino Digital readout system SDS6-2V DRO's improved functions
Functions of Machining
PCD circumferential division (applicable to spark testers and milling machines)
Function for cutting involute chambers (applicable to milling machines)
Bevel machining and angular surface processing (milling machine-specific)
N3 function (milling machine-specific)
Using a milling machine, diagonal boring
R-arc function (milling machine-specific)
Function for measuring taper (Lathe only)
200-tool collection (lathe applicable)
Function that prevents dithering (applicable to grinding machines)
Specifications :
The DRO SDS6-2V is a multifunctional dual axis digital reader. The system's configuration can be changed to accommodate varying processing demands. In addition to doing numerous other visual processing tasks, it can calculate arcs, drill holes perpendicular to straight lines, drill holes at equal intervals around the circle, process surfaces with angles, measure taper, compute angles, and apply digital filters. The use of visual functions is made easier by these features. Using 16- and 32-bit calculators in the DRO system, this is the first factory in China to do so. The DRO system, with an input frequency of up to 5MHz, has the highest a/B ratio in the world.
Model No:
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Feature:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

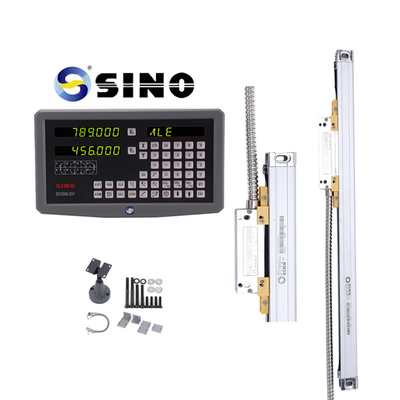

Product image /photos:
The rack in the picture is optioned, not standard product.
