Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Suitable For: | Lathes, Boring Machine, Electro-discharge Machining |
|---|---|---|---|
| Color: | Silvery | Display: | LED Display |
| After Sales Service: | 365 Days Warranty | Voltage: | AC 100-240V/50-60Hz |
| Sealing Protection Method: | IP53 | Resolution: | 0.5μm/1μm/5μm |
| Effective Range: | 30~3000mm | ||
| Highlight: | 2-Axis Digital Readout System,SDS6-2V Digital Readout System |
||
2-Axis SDS6-2V Digital Readout System And KA Linear Glass Grating Rulers On Lathe Milling Machine
Utilizing the most latest 16 bit SCM technology, the SDS6-2V digital readout is an all-purpose DRO that can replace any kind of basic or specific function needed by the SDS2 series.
Basic SDS6-2V Digital Readout Functions
Optional RS-232-C interface; Auxiliary Zero Position Function for 200 Points; Middle Split Action; "mm/inch" conversion display; Diameter/Radius switch display; Compensation for Segmented Errors; Payment for Linear Mistakes; Memory for Power Interruptions; Bedtime switch; Mathematical computations
Sino Digital readout system SDS6-2V DRO's improved functions
Functions of Machining
PCD circumferential division (applicable to spark testers and milling machines)
Function for cutting involute chambers (applicable to milling machines)
Bevel machining and angular surface processing (milling machine-specific)
N3 function (milling machine-specific)
Using a milling machine, diagonal boring
R-arc function (milling machine-specific)
Function for measuring taper (Lathe only)
200-tool collection (lathe applicable)
Function that prevents dithering (applicable to grinding machines)
Specifications :
A multipurpose dual axis digital reader is the DRO SDS6-2V. It is possible to modify the system's setup to meet different processing requirements. It may calculate arcs, drill holes parallel to straight lines, drill holes at equal intervals around the circle, analyze surfaces with angles, measure taper, compute angles, and apply digital filters, among many other visual processing tasks. These elements facilitate the usage of visual functions. This is the first factory in China to use the DRO system with 16- and 32-bit calculators. The DRO system boasts the most powerful a/B ratio in the world, with an input rate of up to 5MHz.
Model No:
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Feature:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

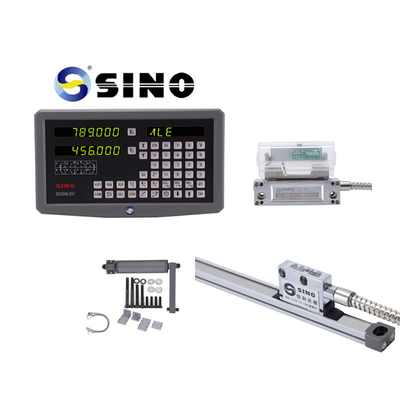

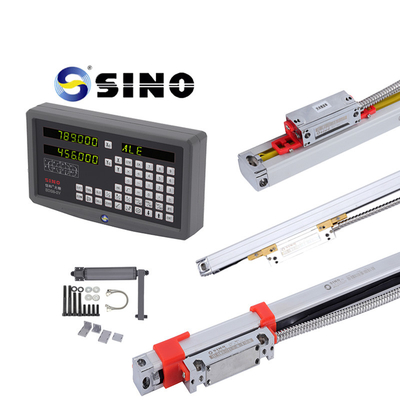

Product image /photos:
The rack in the picture is optioned, not standard product.
