SDS6-2V Dro And SINO Linear Glass Rulers For Effectively Improving Metal Processing Efficiency

SDS6-2V Dro And SINO Linear Glass Rulers For Effectively Improving Metal Processing Efficiency

Utilizing the most latest 16 bit SCM technology, the SDS6-2V digital readout is an all-purpose DRO that can replace any kind of basic or specific function needed by the SDS2 series.

Basic SDS6-2V Digital Readout Functions

Auxiliary Zero Position Function for 200 Points; Middle Split Action; "mm/inch" conversion display; Diameter/Radius switch display; Optional RS-232-C interface Reimbursement for Linear Errors; Compensation for Segmented Errors; Retention for Power Outages; Change of bedtime; calculations in mathematics.

Sino Digital readout system SDS6-2V DRO's improved functions

Functions of Machining

PCD circumferential division (applicable to spark testers and milling machines)

Function for cutting involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

Specifications :

The DRO SDS6-2V is a dual axis digital reader with multiple uses. It is possible to adjust the system settings to accommodate varying processing needs. Along with many other visual processing tasks, it can calculate arcs, drill holes parallel to straight lines, drill holes at equal intervals around the circle, measure taper, analyze surfaces with angles, compute angles, and apply digital filters. The utilization of visual functions is facilitated by these components. The DRO system with 16- and 32-bit calculators is being used for the first time in a Chinese plant. With an input speed of up to 5MHz, the DRO system boasts the most powerful a/B ratio in the world. Its strong attributes have elevated it to the top of the sector.

Model No:

SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function

Feature:
Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)

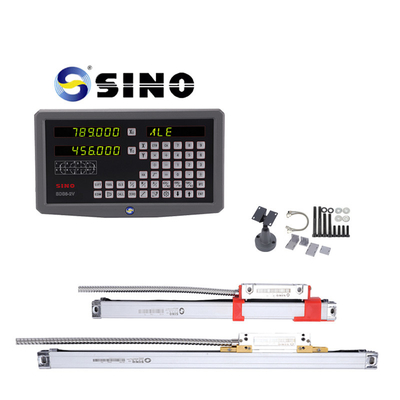

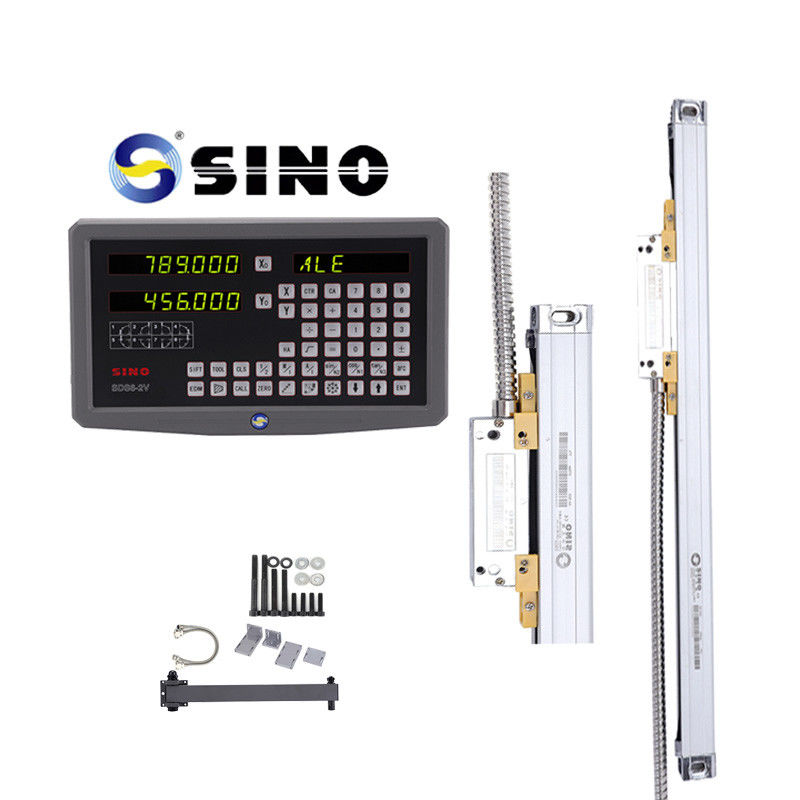

Product image /photos:

The rack in the picture is optioned, not standard product.
