Supporting 4-Axis SINO SDS5-4VA Digital Reading Display And KA Linear Glass Grating Ruler

Brand Name:	SINO
Model Number:	SDS 5-4VA, KA300, KA500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

Supporting 4-Axis SINO SDS5-4VA Digital Reading Display And KA Linear Glass Grating Ruler

Color:

Silvery

Resolution:

0.1μm/0.5μm/1μm/5μm

Voltage:

AC80-240V / 50-60Hz

Application:

Lathes/electrical Discharge Machining/EDM Machine

Warranty Period:

365 Days

Effective Range:

30~3000mm

Display:

LCD

Sealing Protection:

IP53

Supply Ability:

3000 sets per month

Highlight:

4-Axis Digital Reading Display

SDS5-4V Digital Reading Display

Product Description

Supporting 4-Axis SINO SDS5-4VA Digital Reading Display And KA Linear Glass Grating Ruler

The SINO digital display system used in machine tools and other industrial gears will improve the accuracy of production. Its goal is to provide accurate and reliable measurement readings for various machine tools, such as grinders, lathes, and milling machines. In industrial production, determining the stability and accuracy of various process parameters is crucial. SINO digital displays can effectively help users solve problems that are not generated during production. Customers from different countries and regions can choose between multiple languages, which reduces task redundancy and promotes more efficient operating methods.

Measurement

The SDS200 model

Voltage input: AC80-240V

Signal input: TTL

Material: Cover made of metal

Plug: US, UK, EU, AU, etc.

Specifications for Sino Linear scale encoder

The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.

Package list:

Item name	4 axes digital display unit
Digital Readout (DRO)	SDS200
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Others	Cable / Screws / Manual

Detail Information of SDS200 digital readout systems

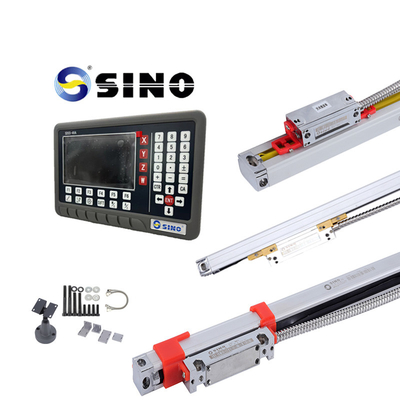

Supporting 4-Axis SINO SDS5-4VA Digital Reading Display And KA Linear Glass Grating Ruler 1

Pin Description:

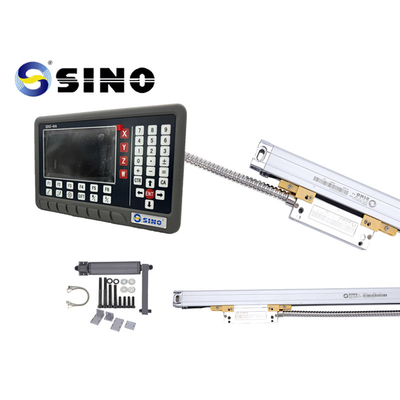

Supporting 4-Axis SINO SDS5-4VA Digital Reading Display And KA Linear Glass Grating Ruler 2
