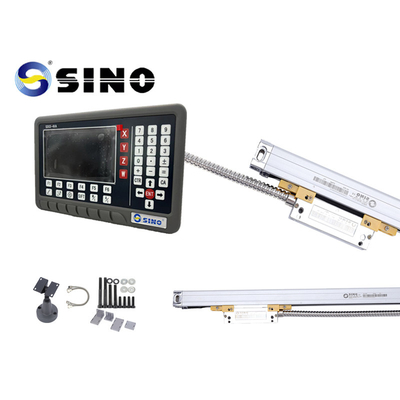

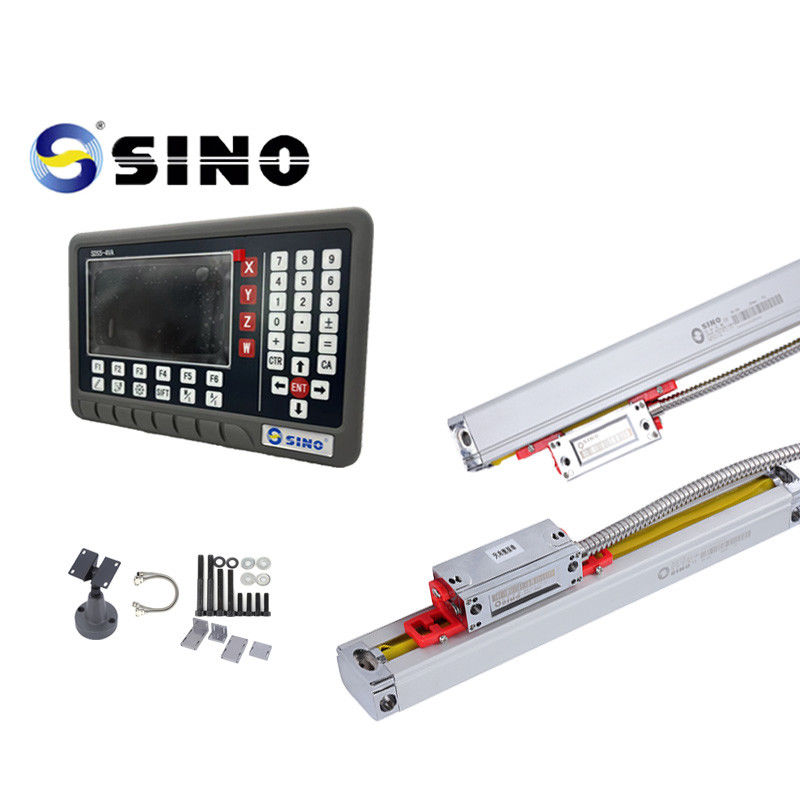

SINO Four Axis SDS5-4VA Digital Display And Grating Ruler To Assist Industrial Production

Brand Name:	SINO
Model Number:	SDS 5-4VA, KA300, KA500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

SINO Four Axis SDS5-4VA Digital Display And Grating Ruler To Assist Industrial Production

Axis:

4 Axis

Resolution:

0.1μm/0.5μm/1μm/5μm

Input Signal:

TTL / RS422

Application:

Lathes/milling Machining/EDM Machine

Warranty Period:

12 Months

Effective Range:

30~3000mm

Power Supply:

+5V±5%、80mA

Sealing Protection:

IP53

Supply Ability:

3000 sets per month

Highlight:

Four Axis SDS5-4VA Digital Readout Display

SDS5-4VA Digital Readout Display

Product Description

SINO Four Axis SDS5-4VA Digital Display And Grating Ruler To Assist Industrial Production

Production precision will increase thanks to the SINO digital display system, which is utilized in machine tools and other industrial gears. Its objective is to deliver dependable and accurate measurement readings for a range of machine tools, including milling machines, lathes, and grinders. Determining the precision and stability of several process parameters is essential in industrial production. Digital displays from SINO can efficiently assist users in resolving non-production-related issues. Multiple languages are available for selection by customers from various nations and areas, which lessens task redundancy and encourages more effective operating techniques.

Measurement

The SDS200 model

Voltage input: AC80-240V

Signal input: TTL

Material: Cover made of metal

Plug: US, UK, EU, AU, etc.

Specifications for Sino Linear scale encoder

The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.

Package list:

Item name	4 axes digital display unit
Digital Readout (DRO)	SDS200
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Others	Cable / Screws / Manual

Detail Information of SDS200 digital readout systems

SINO Four Axis SDS5-4VA Digital Display And Grating Ruler To Assist Industrial Production 1

Pin Description:

SINO Four Axis SDS5-4VA Digital Display And Grating Ruler To Assist Industrial Production 2
