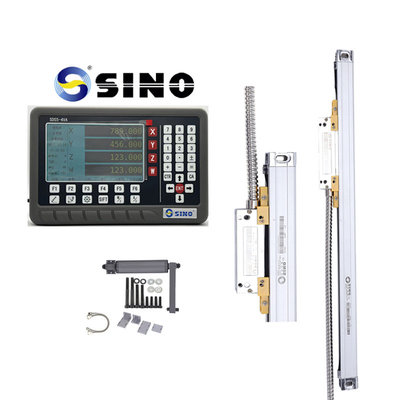

Provide Precise Positioning SINO SDS5-4VA Digital Display And Grating Ruler

Brand Name:	SINO
Model Number:	SDS 5-4VA, KA300, KA500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

Provide Precise Positioning SINO SDS5-4VA Digital Display And Grating Ruler

Material:

Metal

Resolution:

0.1μm/0.5μm/1μm/5μm

Ambient Temperature:

-10~60℃

Application:

Lathes/grinding Machine Machining/EDM Machine

Warranty Period:

365 Days

Max Of Measuring Speed:

60m/min

Power Supply:

+5V±5%、80mA

Sealing Protection:

IP53

Supply Ability:

3000 sets per month

Highlight:

SINO Grating Ruler

Precise Grating Ruler

SDS5-4VA Grating Ruler

Product Description

Provide Precise Positioning SINO SDS5-4VA Digital Display And Grating Ruler

The SINO digital display used for milling machines and other industrial gears effectively improves the accuracy of production. Its goal is to provide accurate and reliable measurement readings for various machine tools (such as grinders, lathes, and milling machines), accurately locate the position of the machine tool, and provide users with a criterion to judge whether the machine tool is working properly. In industrial production, determining the stability and accuracy of various process parameters is crucial. SINO digital displays can effectively help users solve problems that arise during the production process. Customers from different countries and regions can choose between multiple languages, allowing users to choose their preferred language, enabling them to get started and use it faster.

Measurement

The SDS200 model

Voltage input: AC80-240V

Signal input: TTL

Material: Cover made of metal

Plug: US, UK, EU, AU, etc.

Specifications for Sino Linear scale encoder

The SDS200 offers a robust universal display console with options for grinding, turning, and milling.Up to four linear devices can be connected using this four-axis kind. To combine axes or adapt inputs to devices made by different manufacturers, additional interfaces can be employed. Please see the following guide for encoder compatibility.a haptic and long-lasting front diaphragm attached to a robust die-cast enclosure.Generous, easily readable LCD display.Its features include PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.

Package list:

Item name	4 axes digital display unit
Digital Readout (DRO)	SDS200
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Others	Cable / Screws / Manual

Detail Information of SDS200 digital readout systems

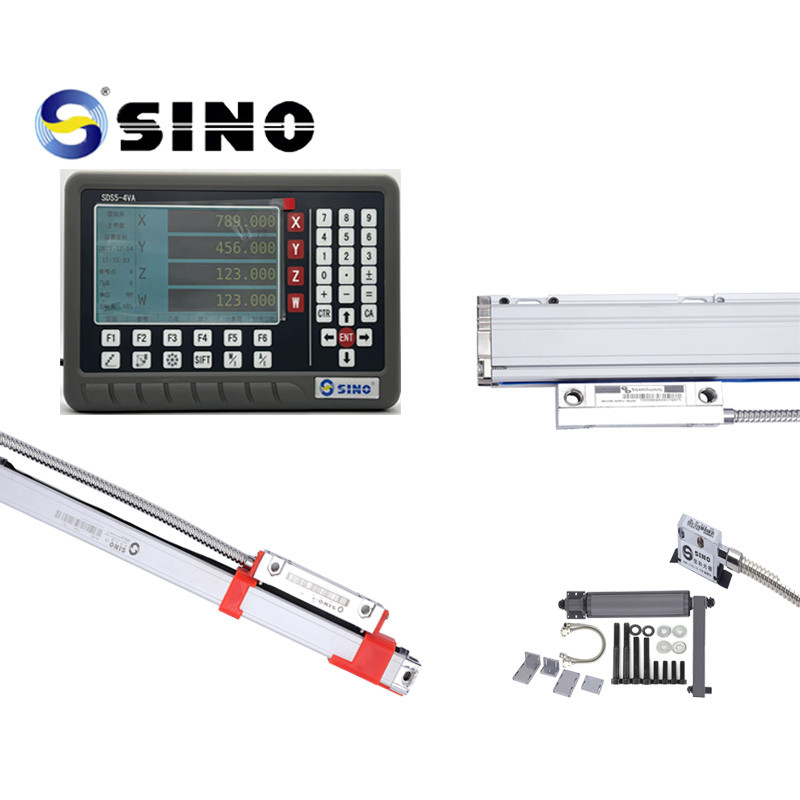

Provide Precise Positioning SINO SDS5-4VA Digital Display And Grating Ruler 1

Pin Description:

Provide Precise Positioning SINO SDS5-4VA Digital Display And Grating Ruler 2
