Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Suitable For: | Machines For Milling, Turning, Drilling, Electro-discharge Machining, And Grinding |
|---|---|---|---|
| Power Source: | ELectricity | Display: | LED |
| Signal: | TTL / RS422 | Voltage Range: | 50-60Hz, AC 100-240V |
| Number Of Axes: | 2 Axis | Resolution-μm: | 0.5/1/5 |
| Effective Range: | 30~3000mm | ||
| High Light: | SDS6-2V Dro Digital Display,2 Axis SDS6-2V Dro Digital Display |
||
SDS6-2V Dro Digital Display Has Shown Excellent Performance In The Metal Processing Industry
Utilizing the most recent 16-bit microcontroller technology, the SDS6-2V digital readout is a universal DRO that may replace any kind of fundamental or specialized function needed by the SDS2 series.
Basic SDS6-2V Digital Readout Functions
Auxiliary Zero Position Function for 200 Points
Middle Split Action
Display of "mm/inch" conversion
Diameter/Radius Switch Display
Compensation for Segmented Errors
Payment for Linear Mistakes
Memory for Power Interruptions
Bedtime Switch
Calculations in mathematics
Optional RS-232-C interface
The enhanced functions of the Sino Digital readout system SDS6-2V DRO
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifications :
A dual axis digital reader with several features is the DRO SDS6-2V. The system's configuration can be changed to accommodate varying processing demands. Among many other visual processing activities, it can calculate arcs, drill perpendicular to straight lines, drill at equal intervals around the circle, process surfaces with angles, measure tapers, compute angles, and apply digital filters. These features make the use of visual functionality easier. It is the first factory in China to use 16- and 32-bit calculators in the DRO system. The DRO system, with an input frequency of up to 5MHz, has the highest a/B ratio in the world.
Model No:
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

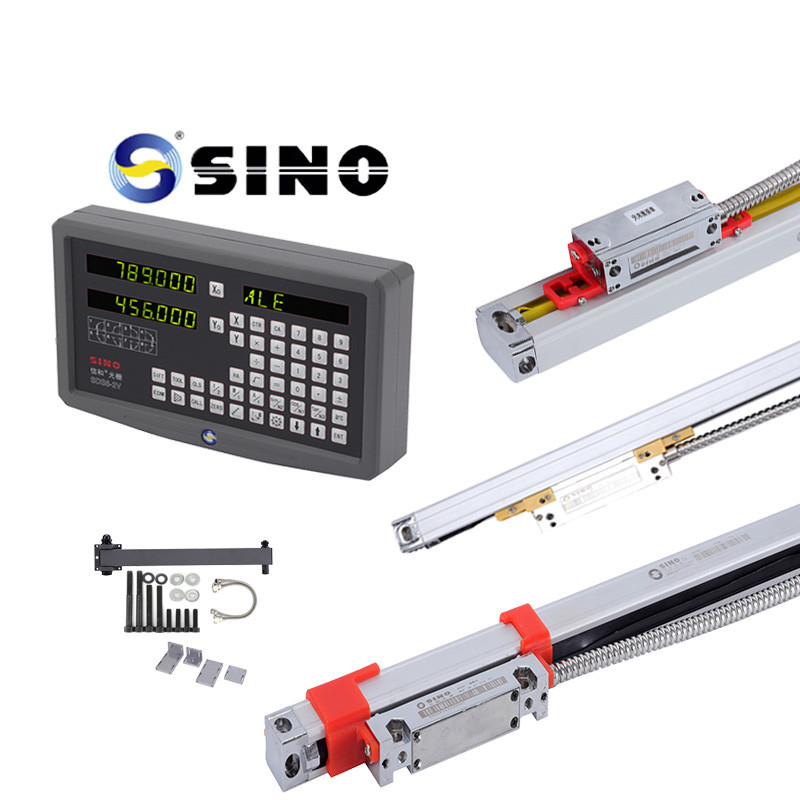

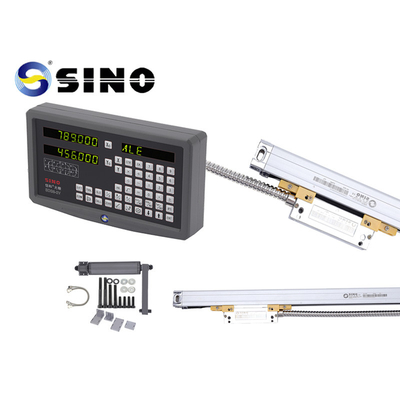

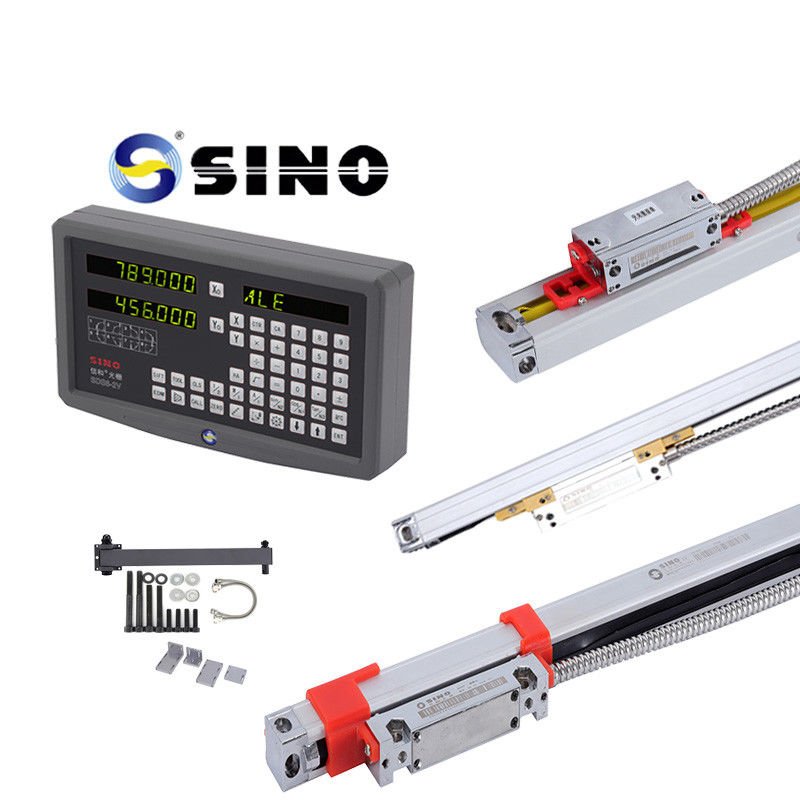

Product image /photos:
The rack in the picture is optioned, not standard product.
