Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Suitable For: | Machines For Milling, Boring, Drilling |
|---|---|---|---|
| Power Source: | ELectricity | Sealing Protection Method: | IP53 |
| Signal: | TTL / RS422 | Ambient Temperature: | -50-140℉ |
| After Sales Service: | 1 Year Warranty | Plug: | US, UK, EU, AU, Etc. |
| Power Supply: | +5V±5%、80mA | ||
| High Light: | Industrial Processing SDS6-2V,Industrial SINO Digital Readout System |
||
SDS6-2V Which Adopts The Latest 16 Bit Microcontroller Technology Is More Suitable For Industrial Processing
Utilizing the most recent 16-bit microcontroller technology, the SDS6-2V digital reader is a universal DRO that may replace any kind of simple or professional function needed by the SDS2 series. Users are better able to finish industrial processes thanks to its greater performance.
Basic functions of SDS6-2V
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
Locations where the SDS6-2V DRO digital readout system is applicable
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Introduction to SDS6-2V:
DRO SDS6-2V is a dual axis digital reader with multiple functions. The system configuration can be changed, and users can make relative modifications according to their actual needs to meet different processing needs. SDS6-2V can handle various visual activities, including but not limited to calculating arcs, drilling perpendicular to straight lines, drilling at equal intervals on the circumference, processing surfaces with angles, measuring tapers, calculating angles, and applying digital filters. These features make the use of visual functions easier, allowing users to have a clearer understanding of the machine's motion trajectory. It is the first factory in China to use 16 bit and 32-bit calculators in the DRO system. The input frequency of the DRO system is as high as 5MHz, with the highest a/B ratio in the world
Model No:
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

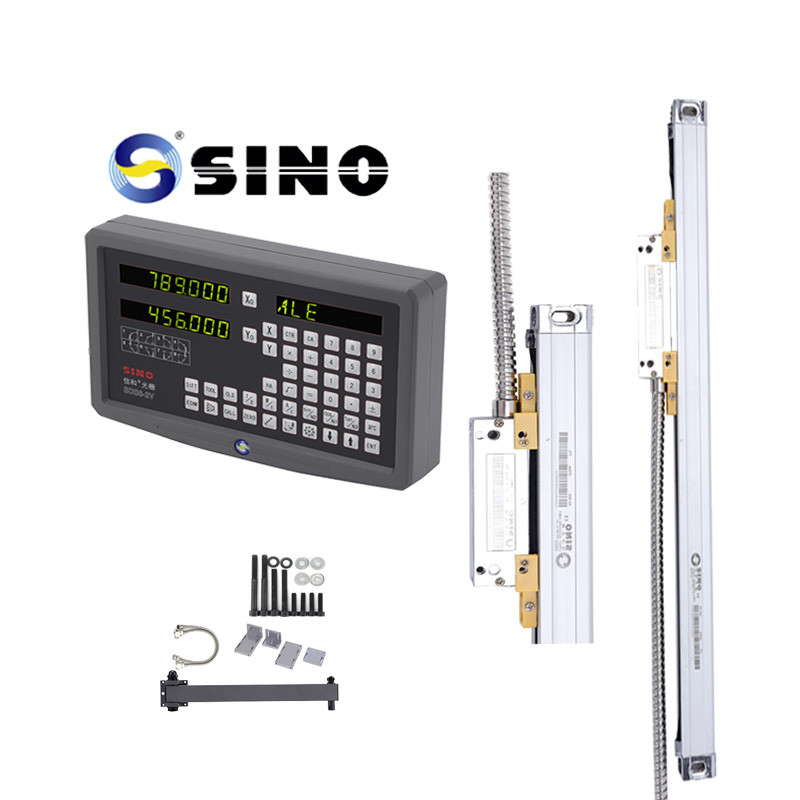

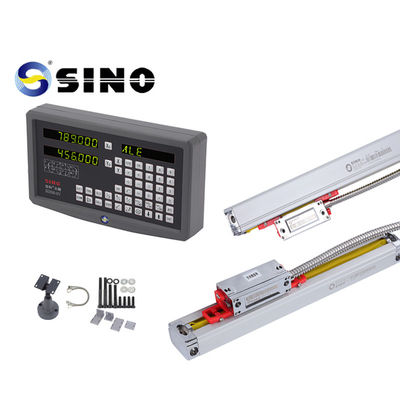

Product image /photos:
The rack in the picture is optioned, not standard product.
