Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Usage: | Boring Machine, EDM Machine，drilling |
|---|---|---|---|
| Power Source: | ELectricity | Sealing Protection Method: | IP53 |
| Input Signal: | TTL / RS422 | Ambient Temperature: | -10~60℃ |
| After Sales Service: | 365 Days Warranty | Axis: | 2 Axis |
| Effective Range: | 30~3000mm | ||
| High Light: | 2 Axis Digital Reading Display,Linear Glass Scale Digital Reading Display |
||
Manual Lathe/Milling Machine 2-Axis Digital Reading Display And Linear Glass Scale
Utilizing the most modern 16-bit microcontroller technology, the SDS6-2V digital reader is a flexible DRO that may replace any kind of fundamental or complex function needed by the SDS2 series. Users are able to do industrial tasks more efficiently thanks to its enhanced performance.
Basic functions of SDS6-2V
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
The digital readout system SDS6-2V DRO is commonly used in:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
A detailed introduction to SDS6-2V
A multipurpose dual axis digital reader is the DRO SDS6-2V. Users can modify the system setup to meet their own requirements and handle different processing demands. Numerous visual activities, like measuring taper, calculating angles, processing surfaces with angles, drilling at equal intervals around the circle, computing arcs, and applying digital filters, can be carried out by the SDS6-2V. These elements enhance the user's understanding of the machine's motion trajectory and make it easier to employ visual functionalities. It is the first factory in China to use 16- and 32-bit calculators in the DRO system. The input frequency of the DRO system has a maximum a/b of 5MHz
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

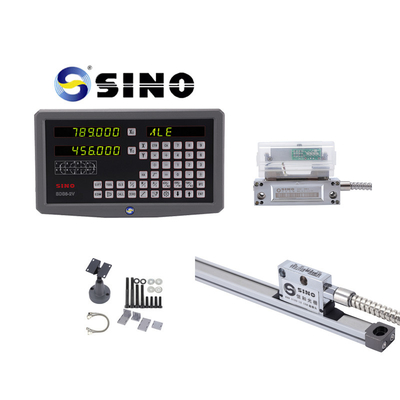

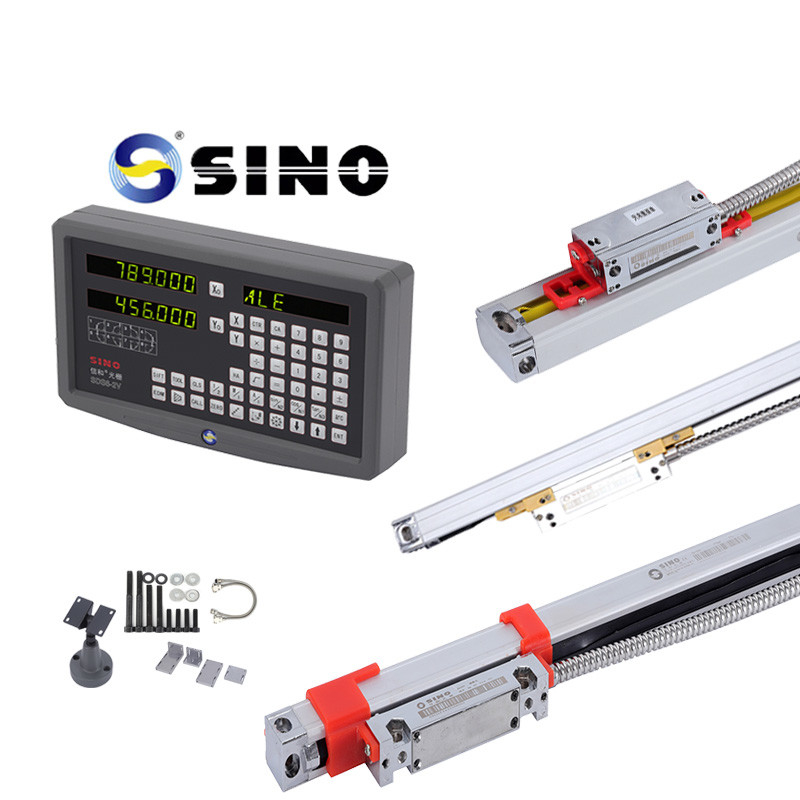

Product image /photos:
The rack in the picture is optioned, not standard product.
