Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Usage: | Grinding Machine, And Boring Machine, |
|---|---|---|---|
| Power Source: | ELectricity | Sealing Protection Method: | IP53 |
| Input Signal: | TTL / RS422 | Color: | Silvery |
| Warranty Period: | 365 Days | Resolution: | 0.1/0.5/1/5μm |
| Effective Range: | 30~3000mm | ||
| High Light: | Manual Turning Linear Glass Scale,Milling Machines Linear Glass Scale,Digital Reading Display Linear Glass Scale |
||
Linear glass scale dual axis SDS6-2V digital reading display for manual turning and milling machines
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its performance prompts, it means that it can better complete corresponding tasks, making it easier for users to use and handle
The functions of SDS6-2V:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
The locations where various functions of the digital readout system SDS6-2V DRO are applied:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
An extensive overview of SDS6-2V:
The DRO SDS6-2V is a dual axis electronic reader with multiple uses. Users can adjust the system configuration to best fit their requirements and accommodate varying processing demands. The SDS6-2V can do an extensive list of visual work, such measuring taper, computing angles, going through surfaces with angles, drilling at equal intervals around the center of the circle, computing arcs, and applying digital filters. These components facilitate the usage of visual functions and improve the user's comprehension of the equipment's motion trajectory. Using Sixteen and thirty-two-bit calculators in the DRO system, it is the first company in China in doing so. The DRO system's maximum a/b input frequency is 5MHz.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

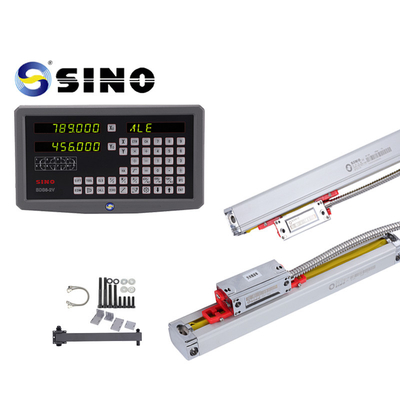

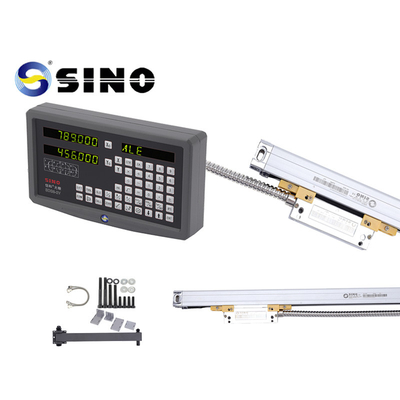

Product image /photos:
The rack in the picture is optioned, not standard product.
