Product Details:
|
| Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Usage: | Grinding Machine, And Boring Machine,drilling |
|---|---|---|---|
| Power Source: | ELectricity | Sealing Protection: | IP53 |
| Input Signal: | TTL / RS422 | Plug: | US, UK, EU, AU, Etc. |
| Warranty Period: | 1 Year | Resolution（μm）: | 0.1/0.5/1/5 |
| Effective Range（mm）: | 30~3000 | ||
| High Light: | Lathe SINO Dro Digital Reading,SDS6-2V SINO Dro Digital Reading |
||
SINO Dro Digital Reading With Linear Grating Ruler, Used For SDS6-2V Of Lathe
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its performance prompts, it means that it can better complete corresponding tasks, making it easier for users to use and handle
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
The application of various functions of SDS6-2V DRO:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Details of SDS6-2V:
DRO SDS6-2V is a dual axis electronic reader with multiple uses. Users can adjust the system configuration to best suit their needs and adapt to different processing needs. SDS6-2V can perform a lot of visual tasks, such as measuring taper, calculating angles, passing through surfaces with angles, drilling holes at equal intervals around the center of a circle, calculating arcs, and applying digital filters. These components contribute to the use of visual functions and enhance users' understanding of device motion trajectories. It is the first company in China to use 16 and 32-bit calculators in the DRO system. The maximum a/b input frequency of the DRO system is 5MHz.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

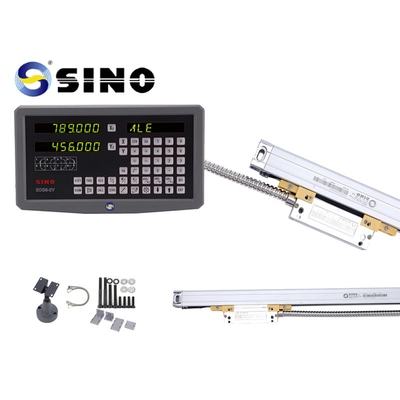

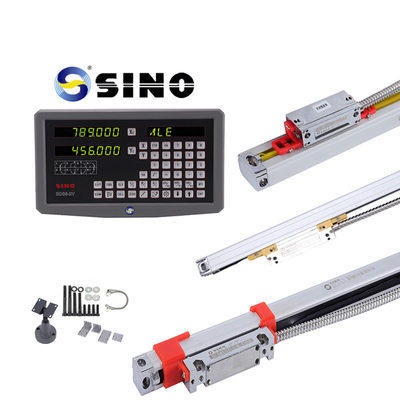

Product image /photos:
The rack in the picture is optioned, not standard product.
