Product Details:
|
Name: | Glass With Linear Scale And SDS6-2V Digital Readout Kits | Usage: | Grinding Machine, Boring Machine |
---|---|---|---|
Axis: | 2 Axis | Sealing Protection: | IP53 |
Input Signal: | TTL / RS422 | Plug: | US, UK, EU, AU, Etc. |
After Sales Service: | 1 Year Warranty | Dro Material: | Metal Case |
Power Supply: | +5V±5%、80mA | ||
High Light: | SDS6-2V Dro Digital Display,Anti Interference Dro Digital Display |
SDS6-2VDro digital display with high-level anti-interference ability
The SDS6-2V digital reader utilizes the most modern 16 bit microcontroller technology, enabling it to handle most tasks and replace any type of basic or complex functionality required by the SDS2 series. Due to its improved performance, it means it can better complete corresponding tasks, making it easier for users to use and handle.
The SDS6-2V's features include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
The utilization of many SDS6-2V DRO functions:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
An extensive overview of SDS6-2V:
The dual axis electronic reader DRO SDS6-2V has several applications. Users are able to modify the system configuration to better fit their requirements and accommodate varying processing demands. Numerous visual activities, including measuring taper, computing angles, passing through angled surfaces, drilling holes at equal intervals around a circle's center, computing arcs, and applying digital filters, can be carried out using the SDS6-2V. These elements improve users' comprehension of the motion trajectories of the gadget and aid in the utilization of visual functions. Using 16- and 32-bit calculators in the DRO system, it is the first Chinese business to do so. The DRO system's maximum a/b input frequency is 5MHz.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
1 PC | 2 Axis LED digital readout SDS6-2V |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

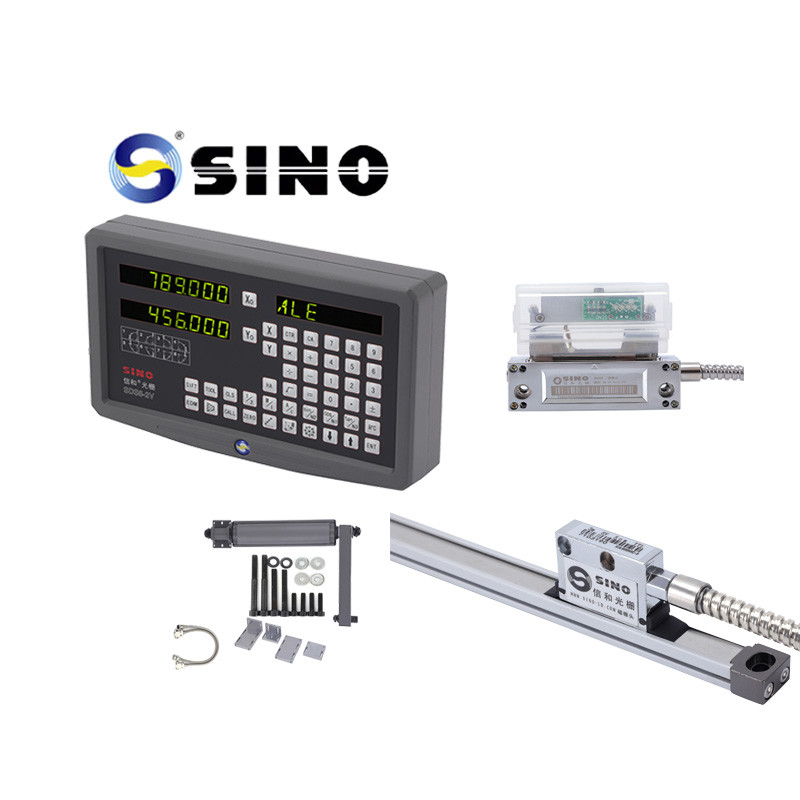

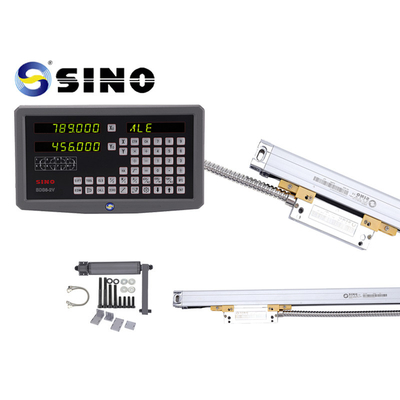

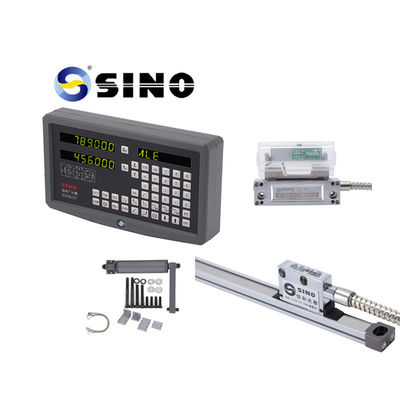

Product image /photos:
The rack in the picture is optioned, not standard product.
