4-Axis Digital Readout Linear Scale DRO With LCD Display Screen: 1um/5um/0.1um Resolution

Brand Name:	SINO
Model Number:	SDS 5-4VA, KA300, KA500，KA200，KA600
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

4-Axis Digital Readout Linear Scale DRO With LCD Display Screen

System:

SDS200 Digital Readout Display

Resolution:

0.1/0.5/1/5μm

Sealing Protection Method:

IP53

Voltage Range:

AC80-240V / 50-60Hz

Max Of Measuring Speed:

60m/min

Application:

Precision Grinder /milling Machine

Supply Ability:

3000 sets per month

Highlight:

4axis Linear Scale DRO

1um Linear Scale DRO

5um Linear Scale DRO

Product Description

4-Axis Digital Readout Linear Scale DRO With LCD Display Screen: 1um/5um/0.1um Resolution

The reliable company SINO is the manufacturer of the accurate measurement instruments and digital reading system. Its objective is to assist customers produce goods more effectively by offering precise and dependable measurement readings for a variety of machine tools, including milling machines, lathes, and grinders. When used in the metalworking and metal processing departments, it is possible to guarantee that the equipment is always in the proper position and error-free by detecting the operating conditions and many process parameters of production equipment in industrial production, as well as precise placement and measurement. Customers from other nations can also switch to the appropriate language for use in an effort to draw in more consumers.

Measurement

The SDS200 model

Voltage input: AC80-240V

Signal input: TTL

Material: Cover made of metal

Plug: US, UK, EU, AU, etc.

Specifications for Sino Linear scale encoder

The SDS5-4VA is outfitted with the SDS200, a potent universal display console appropriate for activities like milling, turning, and grinding. Up to four linear devices can be connected using this four-axis kind. It is possible to combine shafts or modify inputs from devices made by different manufacturers using alternative interfaces that are compatible with encoders. Additionally, SDS5-4VA has a ton of strong features that make it simpler for consumers to utilize. Among its features are PCD, hole line, 200 zero memory, radius/diameter display, and tool offset.

Package list:

Item name	4 axes digital display unit
Digital Readout (DRO)	SDS200
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Others	Cable / Screws / Manual

Detail Information of SDS200 digital readout systems

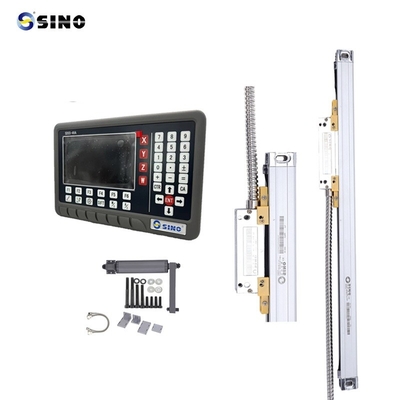

4-Axis Digital Readout Linear Scale DRO With LCD Display Screen: 1um/5um/0.1um Resolution 1

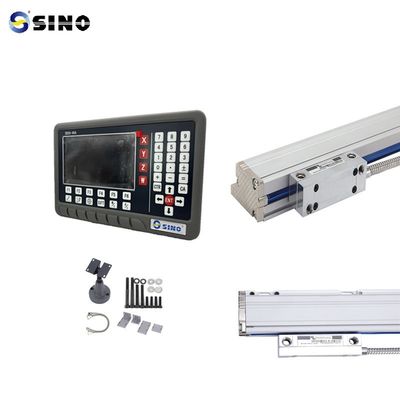

4-Axis Digital Readout Linear Scale DRO With LCD Display Screen: 1um/5um/0.1um Resolution 3

Pin Description:

4-Axis Digital Readout Linear Scale DRO With LCD Display Screen: 1um/5um/0.1um Resolution 4
