Product Details:
|
| Item Name: | SINO 4-Axis SDS5-4VA Digital Reading Display And Linear Scale Grating Ruler | System: | SDS200 Digital Readout Display |
|---|---|---|---|
| After Sales Service: | 365 Days Warranty | Sealing Protection: | IP53 |
| Input Signal: | TTL / RS232 | Resolution Ratio: | 0.5/1/5μm |
| Application: | Precision Grinder / Lathes | ||
| High Light: | Easily Mastered SDS5-4VA Digital Reading Display,SINO SDS5-4VA Digital Reading Display |
||

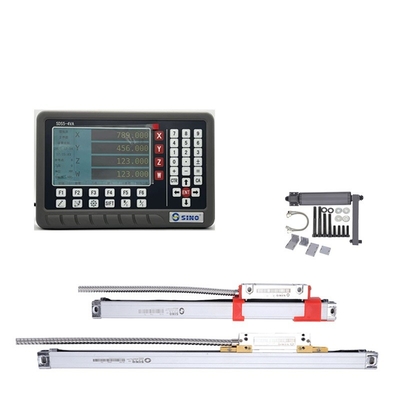

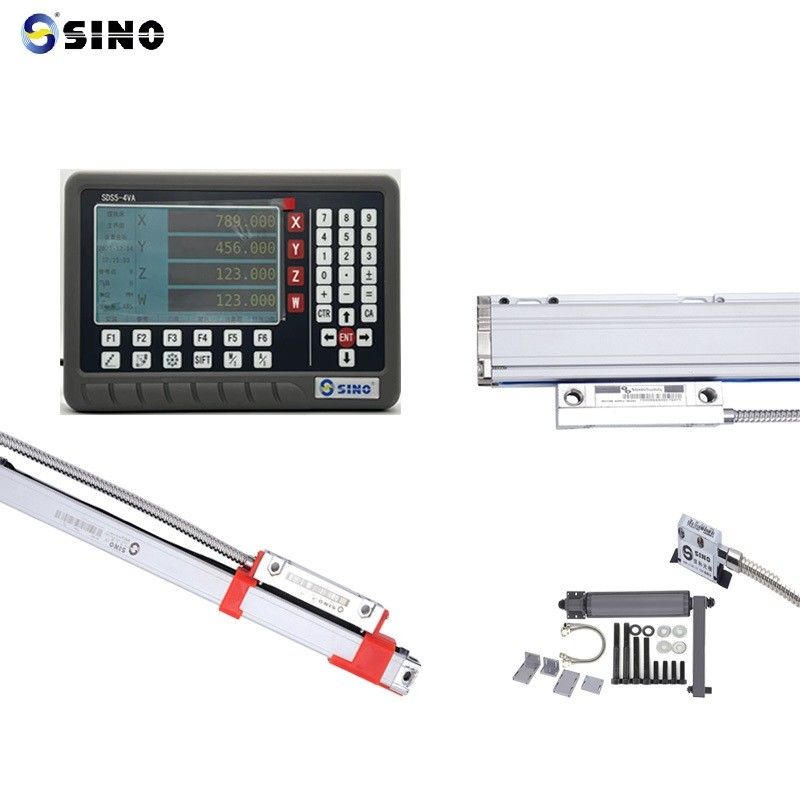

SINO 4-Axis SDS5-4VA Digital Reading Display And Linear Scale Grating Ruler That Can Be Easily Mastered
SINO is a company that produces precision measuring instruments and digital reading systems. Its goal is to provide accurate measurement readings for various machine tools, including milling machines, lathes, and grinders, so that users can understand the production status of lathes. It can monitor the position of the machine tool in real time, ensuring that the equipment is always in the correct position during metal processing and reducing errors in the production process. It achieves this by detecting the operating conditions and many process parameters of production equipment in industrial production, as well as precise placement and measurement. SDS5-4VA has multiple language mode conversions, and users can choose the appropriate language to operate according to their actual situation.
Measurement
The SDS200 model
Voltage input: AC80-240V
Signal input: TTL
Material: Cover made of metal
Plug: US, UK, EU, AU, etc.
Introduction to SDS5-4VA
SDS200 is a powerful universal display console suitable for milling, turning, and grinding process operations, provided together with SDS5-4VA. It can connect four linear devices. You can change the input of devices manufactured by different manufacturers by using encoder compatibility to use different interfaces to combine axes. In addition, SDS5-4VA has a large number of powerful features, making it easier for users to use. Including but not limited to PCD, hole lines, 200 zero memory, radius/diameter display, and tool offset. Because it has so many rich functions, it can significantly reduce the difficulty of operation and increase the convenience of operation.
Package list:
| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
