Product Details:
|
| Item Name: | SINO 4-Axis SDS5-4VA Digital Reading Display And Linear Scale Grating Ruler | System: | SDS200 Digital Readout Display |
|---|---|---|---|
| Warranty Period: | 365 Days | Sealing Protection Method: | IP53 |
| Effective Length: | 30~3000mm | Resolution Ratio: | 0.10.5/1/5μm |
| Application: | Precision Grinder /EDM Machine | ||
| High Light: | SINO SDS5-4VA Digital Reading Display,4Axis SDS5-4VA Digital Reading Display,SDS5-4VA Digital Reading Display |
||

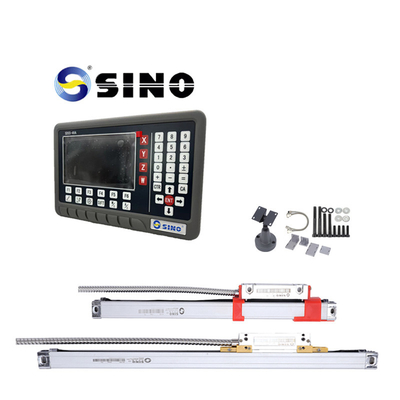

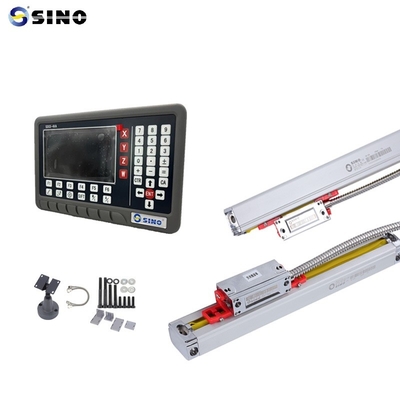

Easy-To-Learn SINO 4-Axis SDS5-4VA Digital Reading Display With Linear Scale Grating Ruler
SINO is a manufacturer of digital reading systems and precision measurement tools. Its objective is to give users precise measurement readings for a range of machine tools, such as milling machines, lathes, and grinders, so they can ascertain the lathes' state of production. It can track the machine tool's location in real time, minimizing production errors and guaranteeing that the machinery is always positioned correctly during metal processing. It accomplishes this by precisely placing and measuring production equipment, as well as detecting several process factors and operational conditions in industrial production. With the many language mode conversions available for SDS5-4VA, customers can select the language that best suits their needs.
Measurement
The SDS200 model
Voltage input: AC80-240V
Signal input: TTL
Material: Cover made of metal
Plug: US, UK, EU, AU, etc.
Introduction to SDS5-4VA
Accompanied by SDS5-4VA, SDS200 is a potent universal display console appropriate for milling, turning, and grinding process activities. It has four linear device connections. By utilizing encoder compatibility to combine axes using multiple interfaces, you can modify the input of devices made by different manufacturers. SDS5-4VA also offers a lot of strong features that make it easier for people to utilize. PCD, hole lines, 200 zero memory, radius/diameter display, and tool offset are a few examples, but there are more. It may greatly lower operating difficulty and boost operating convenience because it has so many rich functions.
Package list:
| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
