Product Details:
|
| Item: | SDS2MS Digital Display And KA Linear Grating Ruler | Number Of Axis: | 2 Axis |
|---|---|---|---|
| Usage: | Milling Machine,grinding Machine | Voltage: | AC85-250V / 50-60Hz |
| Effective Range: | 30~3000mm | Power Supply: | +5V±5%、80mA |
| Warranty: | 365days | ||
| High Light: | Measuring Instruments Linear Grating Ruler,Precise Positioning Linear Grating Ruler,SDS2MS Linear Grating Ruler |
||
SDS2MS Digital Display And KA Linear Grating Ruler For Precise Positioning Of Measuring Instruments
Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:
1. Dual axis DRO: This kit allows you to simultaneously monitor and manage the movement of the machine tool along two axes, such as the X and Y axes in a milling machine. This allows you to clearly evaluate the operating status of the equipment and determine whether the machine tool is in the correct position.
2. Magnetic ruler encoder system: The KA linear ruler encoder system utilizes magnetic technology. The DRO display unit and the magnetic balance installed on the machine shaft can timely reflect the position of the equipment, thereby generating accurate and reliable readings. The readings can be used to track the operation status and provide position feedback at any time.
3. Wide voltage range: The SDS 2MS DRO kit is its optimal voltage range from 100V to 240V AC. Its voltage regulation capability ensures compatibility with various power supply standards. Only when the voltage is set properly can the device function properly.
4. User friendly interface: It consists of buttons and a digital display screen, and the interface operation of the DRO display unit is simple. By using function buttons to switch between various measurement data, work efficiency can be improved.
Capabilities possessed:
1. Radius/diameter conversion.
2. MM/Inch conversion.
3. Absolute/relative conversion.
4. Mid-splitting function.
5. Easy "R" function.
6. Smooth "R" function.
7. PCD hole positioning on circumference.
8. 200 groups zero position memory.
Detailed parameters of DRO SDS2MS digital readout system:
1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz
2. 15w power consumption: 25 va
3. Coordinate the number: a coordinates, two coordinates
4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols
5. Net Weight: 1.3kg/2.9lb
6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.
7. Allow the input signal frequency: > 100 KHZ
8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns
| 1 PC | 2 Axis digital readout SDS2MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

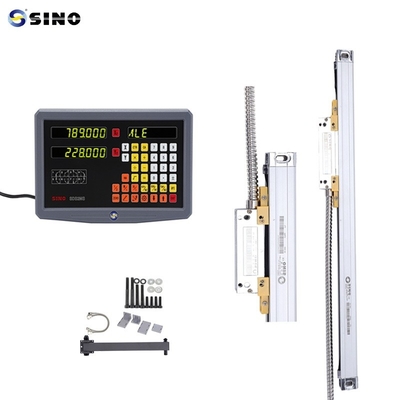

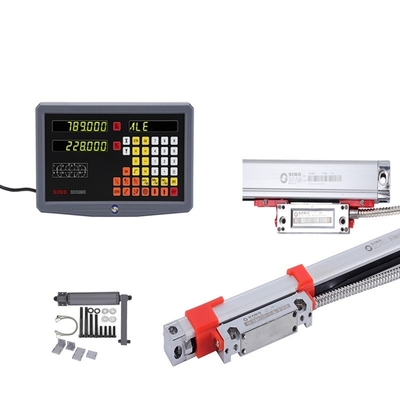

Product image /photos:
The rack in the picture is optioned, not standard product.
