Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:

1. Dual axis DRO: With the help of this kit, you may simultaneously control and observe how the machine tool moves along two axes, such as the X and Y axes in a mill. This makes it possible for you to assess the equipment's functioning condition and ascertain whether the machine tool is positioned correctly.

2. Magnetic ruler encoder system: The magnetic technology is employed by the KA linear ruler encoder system. Accurate and trustworthy readings can be produced by the DRO display unit and the magnetic balance mounted on the machine shaft, which can promptly reflect the position of the apparatus. At any moment, position feedback may be obtained and the operation status can be monitored using the readings.

3. Broad voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100 and 240 volts AC. Its capacity to regulate voltage guarantees compliance with different power supply standards. The device can only operate correctly when the voltage is set correctly.
4. User-friendly interface: The DRO display unit has an easy-to-use interface that consists of buttons and a digital display screen. Work efficiency can be increased by using function buttons to switch between different measurement data.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

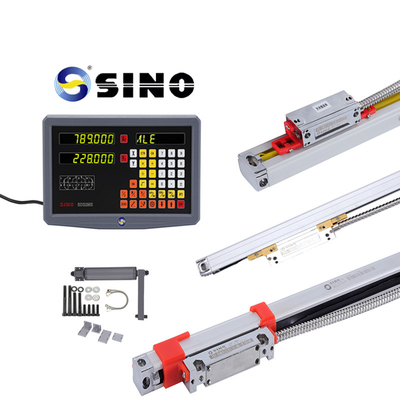

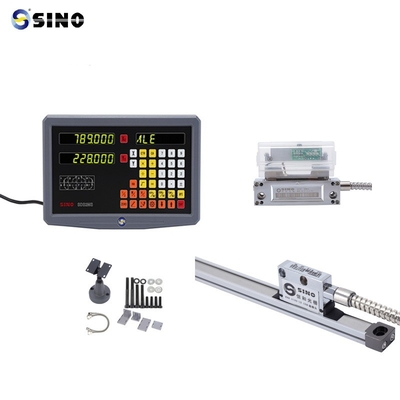

Product image /photos:

​

The rack in the picture is optioned, not standard product.
