Overview of Dual Axis SDS 2MS Digital DRO and KA Grating Ruler

1. Dual axis DRO: With this kit, you can simultaneously control and observe how the machine moves along two axes, such as the X and Y axes in the mill. This allows you to evaluate the working progress of the equipment and determine whether the machine tool has reached the expected point.

2. Magnetic ruler encoder system: The KA linear ruler encoder system adopts magnetic technology. By cooperating with the DRO display unit and the magnetic glass scale installed on the machine shaft, a relatively accurate dynamic reading can be obtained. This reading can reflect the position of the equipment in a timely manner. At any time, position feedback can be obtained and readings can be use

3. Wide voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100 and 240 volts AC. Any device has its appropriate operating voltage, and only when the required voltage is met can the device function properly.

4. User friendly interface: The DRO display unit has an easy-to-use interface consisting of buttons and a digital display screen. Users can switch between different measurement data by using function buttons and select appropriate readings to assist in device adjustment.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

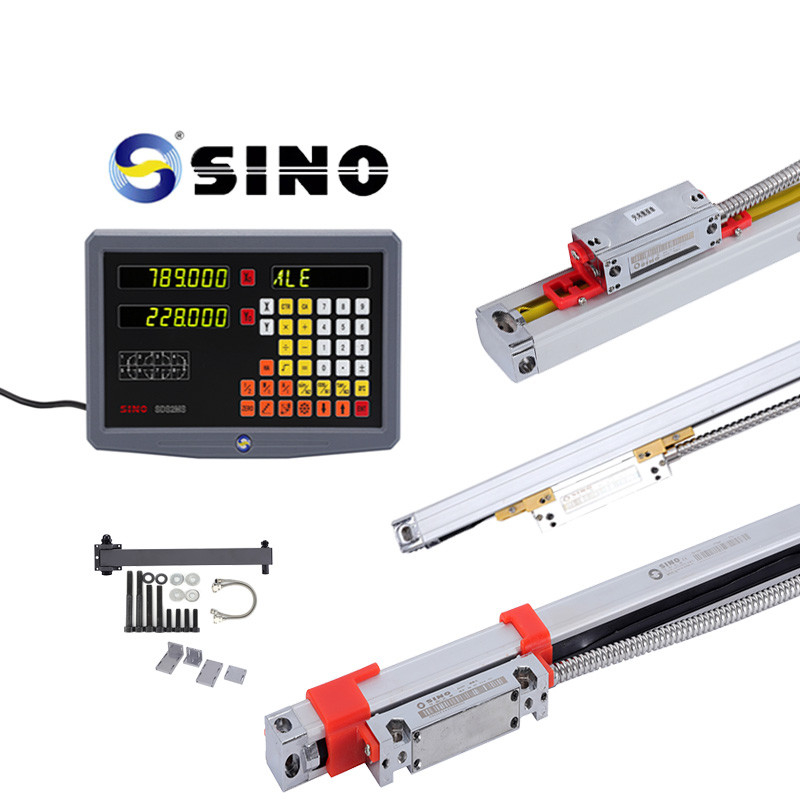

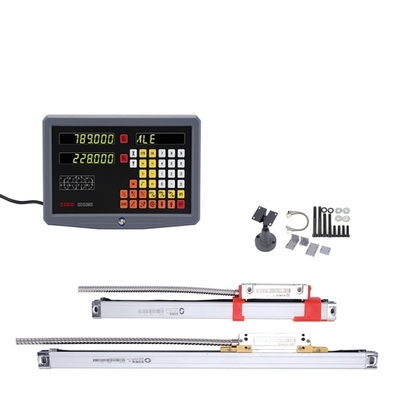

Product image /photos:

​

The rack in the picture is optioned, not standard product.
