verview of SDS 2MS Dual Axis Digital DRO and KA Grating Ruler

1. Dual axis DRO: With this kit, you can simultaneously control and observe the movement of the machine along two axes, such as the X and Y axes in a milling machine. This allows you to evaluate the working progress of the equipment and determine whether the machine tool has reached the user's target position.

2. Magnetic ruler encoder system: The KA linear ruler encoder system adopts magnetic technology. By cooperating with the DRO display unit and the magnetic glass scale installed on the machine shaft, relatively accurate dynamic readings can be obtained. This reading can reflect the position of the equipment in a timely manner. Timely feedback can enable operators to determine whether the movement of the machine tool meets the expected results and make timely responses.

3. Wide voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100 and 240 volts AC. Any device has a suitable working voltage, and only when the required voltage is reached can the device function properly, helping users accurately measure at designated points.

4. User friendly interface: The DRO display unit has an easy-to-use interface consisting of buttons and a digital display screen. Users can choose different function buttons to switch between different measurement data to cope with complex working environments.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

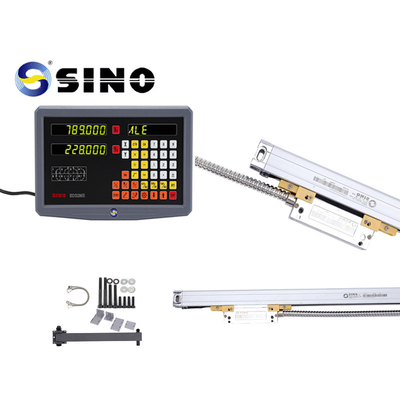

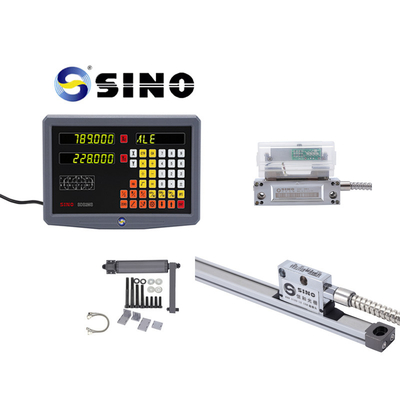

Product image /photos:

​

The rack in the picture is optioned, not standard product.
