Multifunctional 2-Axis SDS6-2V, Precise Machining And Positioning Can Be Achieved

With The Help Of The Multifunctional 2-Axis SDS6-2V, Precise Machining And Positioning Can Be Achieved

The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can better complete corresponding tasks and effectively improve the quality of production processes.

The functions of SDS6-2V include:

200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option

Where SDS6-2V DRO can be applied:

Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)

Details of SDS6-2V:

DRO SDS6-2V is a dual axis electronic reader with multiple uses. Users can adjust the system configuration to best suit their needs and adapt to different processing needs. The SDS6-2V has multiple functions for operators to use, such as measuring taper, calculating angles, passing through surfaces with angles, drilling holes at equal intervals around the center of a circle, calculating arcs, and applying digital filters. The diverse functions of SDS6-2V enable it to be applied in various situations, providing a more comprehensive display of the machine tool's motion trajectory and enhancing users' understanding of the device's motion trajectory. At the same time, it is the first company in China to use 16 bit and 32-bit calculators in DRO systems. The maximum a/b input frequency of the DRO system is 5

Model No:.

SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function

Characteristic​:

Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)

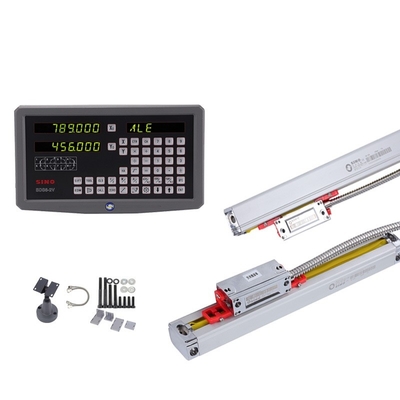

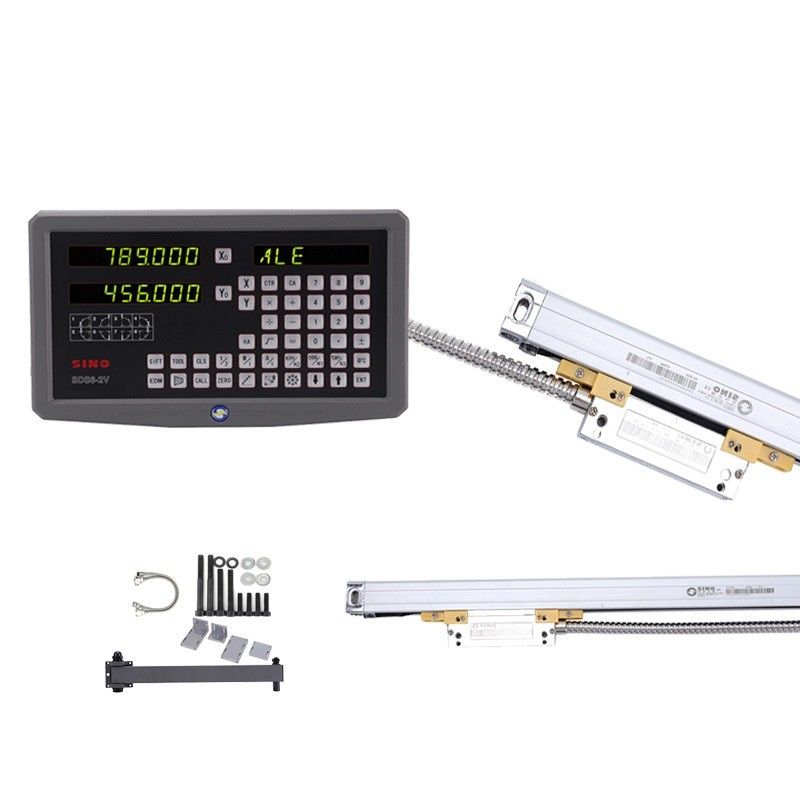

Product image /photos:

​

The rack in the picture is optioned, not standard product.
