Product Details:
|
Name: | Linear Scale And 2-Axis SDS6-2V Digital Readout Kits | Application: | Precision Grinder, Boring Machine And Drilling |
---|---|---|---|
Material: | Metal | Sealing Protection: | IP53 |
Input Signal: | TTL / RS232 | Plug: | US, UK, EU, AU |
Warranty Period: | 12 Months | Resolution(μm): | 0.5/1/5 |
Effective Range(cm): | 3~300 | ||
High Light: | Accurate Machining 2-Axis SDS6-2V,Multifunctional 2-Axis SDS6-2V,Positioning 2-Axis SDS6-2V |
Accurate Machining And Positioning Are Possible With The Multifunctional 2-Axis SDS6-2V
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can better complete corresponding tasks and effectively improve the quality of production processes.
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
Where SDS6-2V DRO can be applied:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifics of SDS6-2V:
The dual axis electronic reader DRO SDS6-2V has several applications. Users are able to modify the system configuration to better fit their requirements and accommodate varying processing demands. Operators can utilize the SDS6-2V for a variety of tasks, including measuring taper, arc calculation, passing through angled surfaces, drilling holes at uniform intervals around a circle's center, and applying digital filters. Because of its many features, the SDS6-2V may be used in a variety of settings, giving users a better grasp of the motion trajectory of the device and allowing for a more thorough presentation of the machine tool's motion trajectory. It is also the first company in China to use DRO systems with calculators that are 16 and 32 bits in size. The maximum a/b input frequency of the DRO system is 5
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
1 PC | 2 Axis LED digital readout SDS6-2V |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

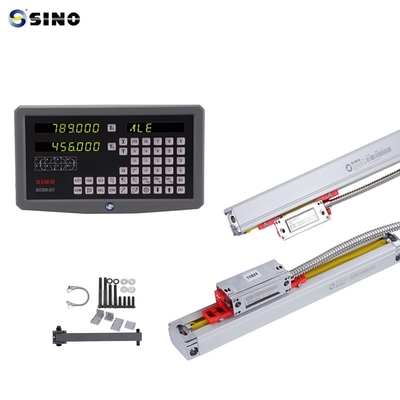

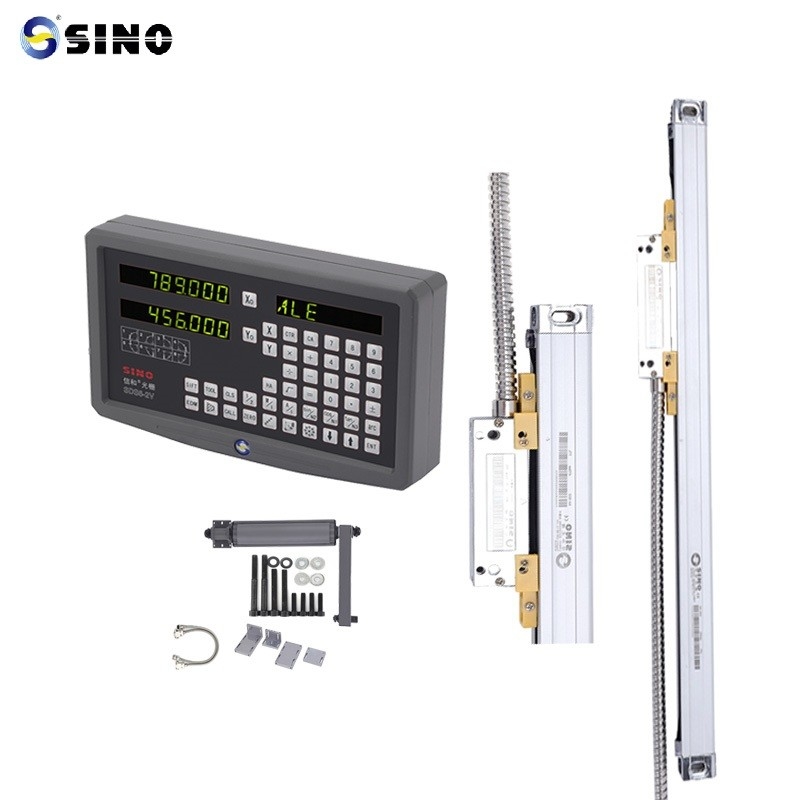

Product image /photos:
The rack in the picture is optioned, not standard product.
