Product Details:
|
| Name: | Linear Scale And 2-Axis SDS6-2V Digital Readout Kits | Application: | Precision Grinder, Boring Machine And Lathes |
|---|---|---|---|
| Material: | Iron | Sealing Protection Method: | IP53 |
| Input Signal: | TTL / RS232 | Plug: | US, UK, EU, AU |
| After Sales Service: | 12 Months | Resolution（μm）: | 0.1/0.5/1/5 |
| Effective Range（cm）: | 3~300 | ||
| High Light: | 2Axis SDS6-2V Digital Reading Display,SDS6-2V Digital Reading Display |
||
2-Axis SDS6-2V Digital Reading Display That Meets The Majority Of Metal Processing Measurements
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can better complete corresponding tasks and effectively improve the quality of production processes.
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
The places where SDS6-2V DRO is widely used:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifics of SDS6-2V:
The dual axis digital reading display DRO SDS-6-2V has multiple application functions. Users can modify system configurations to better meet their needs and adapt to different processing needs. Operators can use SDS6-2V to perform various measurement functions, including measuring taper, calculating arcs, passing through inclined surfaces, drilling holes at uniform intervals around the center of the circle, and applying digital filters. Due to its many functions, SDS6-2V can be used in various machining environments, allowing users to better grasp the movement trajectory of the equipment and allowing for a more comprehensive display of the machine tool's movement trajectory to determine whether the machine tool is on the correct machining track. It is also the first company in China to use DRO systems with 16 bit and 32-bit calculators. The maximum a/b input frequency of the DRO system is 5.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

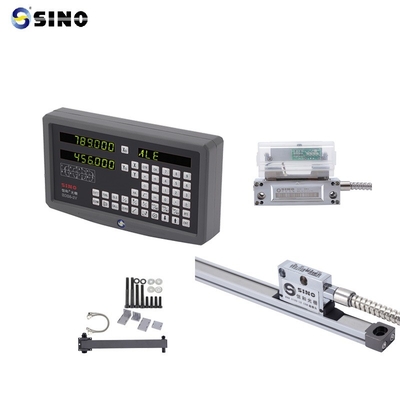

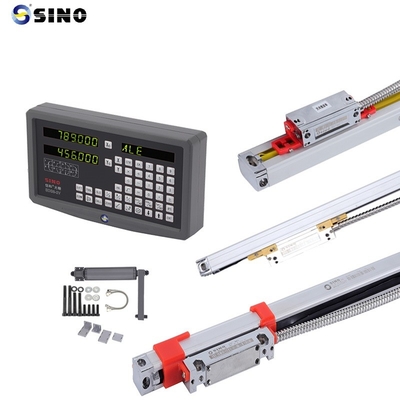

Product image /photos:
The rack in the picture is optioned, not standard product.
