Product Details:
|
Name: | SDS6-2V Digital Reading Display And Linear Grating Ruler | Application: | Boring Machine And Drilling |
---|---|---|---|
Material: | Iron | Sealing Protection Method: | IP53 |
Input Signal: | TTL / RS232 | Ambient Temperature: | -10~60℃ |
After Sales Service: | 1 Year Warranty | Effective Range: | 30~3000mm |
High Light: | SDS6-2V Digital Reading Display,Milling SDS6-2V Digital Reading Display |
Use In Milling SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed.
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can better complete corresponding tasks and effectively improve the quality of production processes.
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
SDS6-2V DRO commonly used processing locations:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifics of SDS6-2V:
There are several applications for the dual axis digital reading display DRO SDS-6-2V. In order to meet their various processing needs, users can modify the system setup and select a processing technique. Many measurement activities, such as measuring taper, calculating arcs, passing over slopes, drilling holes at regular intervals around the circle's center, and employing digital filters, can be carried out by operators using the SDS6-2V. These robust features enable the SDS6-2V to be used in a variety of machining environments, giving users a better understanding of the equipment's movement trajectory and a more thorough display of the machine's movement trajectory to help them determine whether the machine is operating on the intended machining trajectory. Staff members are also capable of promptly correcting mistakes to prevent damaged items. Additionally, it is the first Chinese corporation to use a DRO system with calculators that are 16 and 32 bits in size. The DRO system's maximum a/b input frequency is 5.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
1 PC | 2 Axis LED digital readout SDS6-2V |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

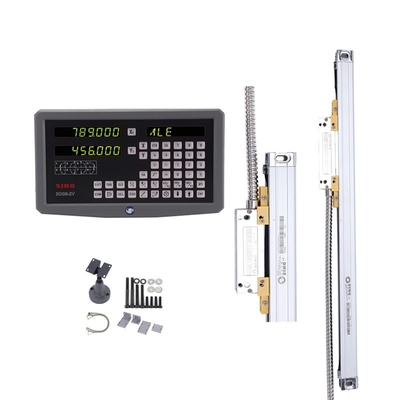

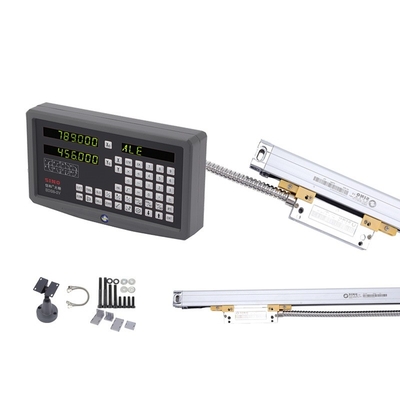

Product image /photos:
The rack in the picture is optioned, not standard product.
