SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings

SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings
SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings

Large Image :  SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-2V,KA200/300/500/600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings

Description
Item: Linear Scale And SDS6-2V Digital Readout Display Usage: Grinding Machine, Boring Machine
Power Source: ELectricity Sealing Protection: IP53
Input Signal: TTL / RS232 Ambient Temperature: -10~60℃
Warranty Period: 1 Year Resolution(μm): 0.1/0.5/1/5
Energy Source: +5V±5%、80mA
High Light:

Machine Tool Digital Readout Display

,

Milling Machine Digital Readout Display

,

Precise Reading Digital Readout Display

SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings





The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can complete more tasks and more accurately locate the position of the machine tool.



The functions of SDS6-2V include:



200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option



Where SDS6-2V DRO can be applied:





Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)



Details of SDS6-2V:



DRO SDS6-2V is a dual axis electronic reader with multiple uses. Users can adjust the system configuration to select the optimal parameters for machine operation, in order to adapt to different processing needs. The SDS6-2V has multiple functions for operators to use, including measuring taper, calculating angles, passing through surfaces with angles, drilling holes at equal intervals around the center of the circle, calculating arcs, and applying digital filters. The multiple functions of SDS6-2V enable it to be applied in various machining scenarios. It can also display the motion trajectory of the machine tool, enhance users' understanding of the device's motion trajectory, facilitate users to observe the real-time trajectory of the machine tool, and judge whether the machine tool is moving according to the normal trajectory. At the same time, it is also the first company in China to use 16 bit and 32-bit calculators in the DRO system. The maximum a/b input frequency of the DRO system is 5



Model No:.



SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function



Characteristic​:


Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)



Packaging List :

1 PC 2 Axis LED digital readout SDS6-2V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable

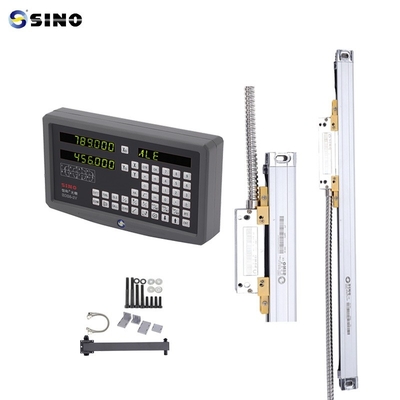

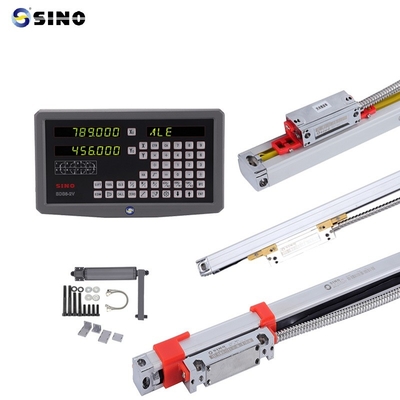

Product image /photos:



SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings 0SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings 1SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings 2

SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings 3

The rack in the picture is optioned, not standard product.



SDS6-2V Digital Readout Display For Precise Reading Of Machine Tool/Milling Machine Readings 4
