Product Details:
|
| Item: | Linear Scale And SDS6-2V Digital Readout Display | Usage: | Grinding Machine,EDM Machine |
|---|---|---|---|
| Power Source: | ELectricity | Sealing Protection Method: | IP53 |
| Input Signal: | TTL / RS232 | Ambient Temperature: | -10~60℃ |
| Warranty Period: | 12 Months | Resolution（μm）: | 0.1/0.5/1/5 |
| Display: | LED Display |
SDS6-2V Digital Readout Display For Accurate Machine Tool/Milling Machine Readings And Data Interpretation
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can complete more tasks and more accurately locate the position of the machine tool.
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
Where SDS6-2V DRO can be applied:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Details of SDS6-2V:
DRO SDS6-2The dual axis electronic reader DRO SDS6-2V has several applications. To adapt to various processing needs, users can modify the system design to choose the ideal parameters for machine operation. Operators can utilize the SDS6-2V for a variety of tasks, including as measuring taper, computing angles, drilling holes at equal intervals around the circle's center, applying digital filters, and passing through surfaces with angles. The SDS6-2V's versatility allows it to be used in a range of machining situations. It can also show the machine tool's motion trajectory, improve users' comprehension of the device's motion trajectory, make it easier for users to watch the machine tool's real-time trajectory, and determine whether the machine tool is moving in accordance with its usual trajectory. It is also the first firm in China to employ the DRO technology with calculators that are 16 and 32 bits in size. The DRO system's maximum a/b input frequency is 5.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

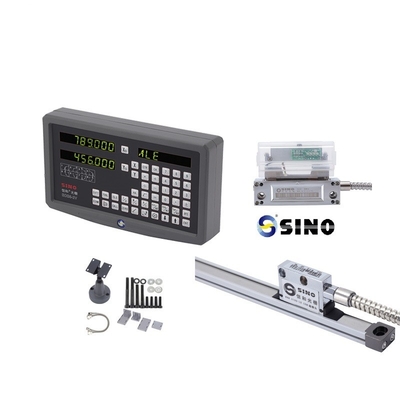

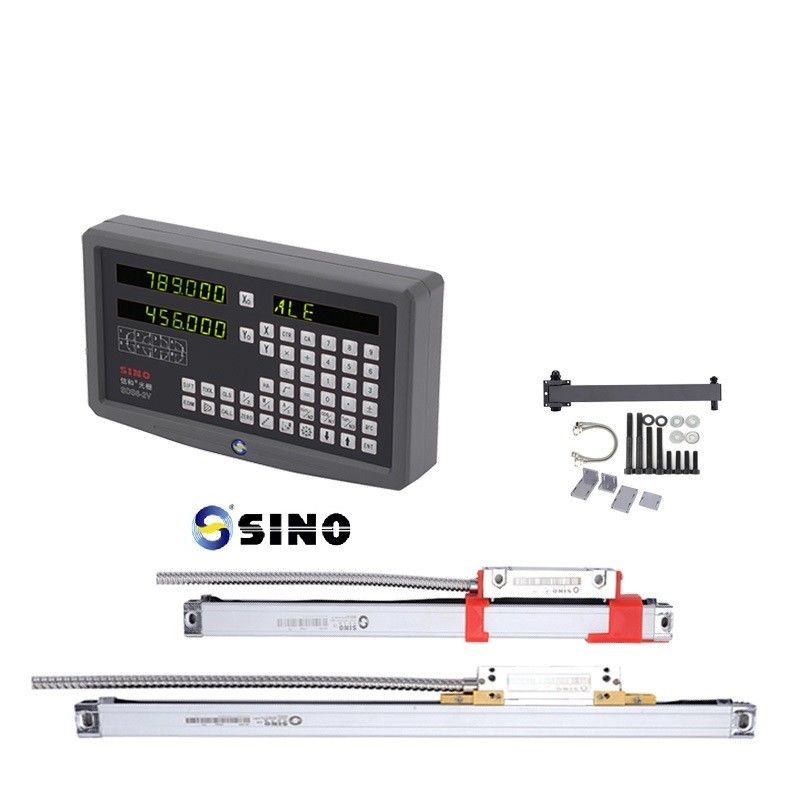

Product image /photos:
The rack in the picture is optioned, not standard product.
