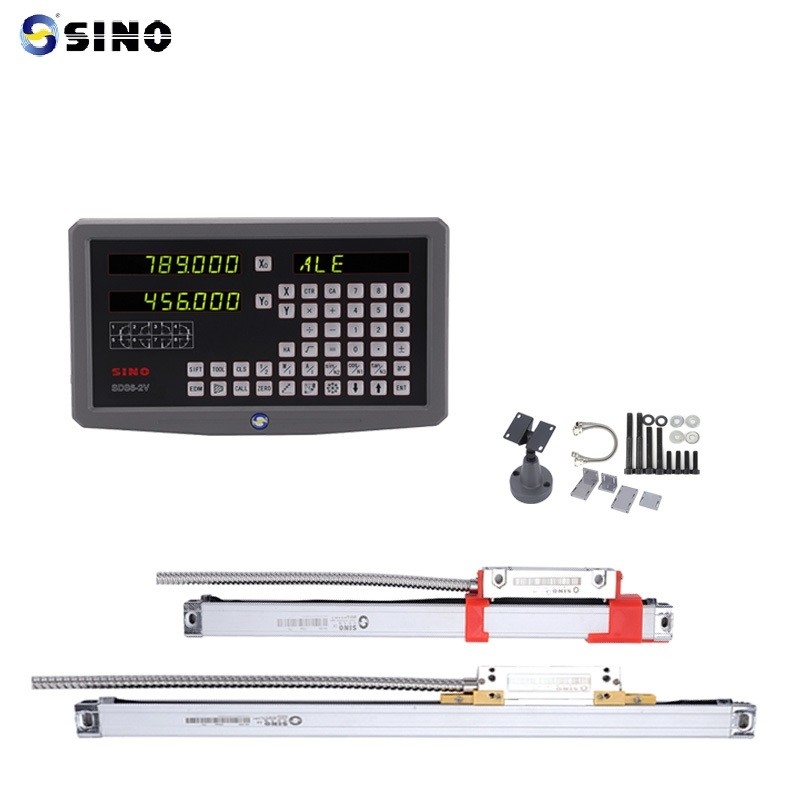

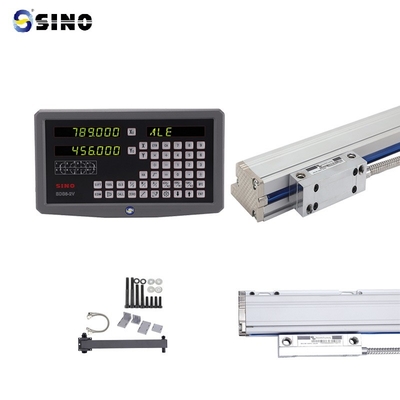

SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale

SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale
SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale

Large Image :  SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-2V,KA200/300/500/600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale

Description
Item: SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale Usage: Grinding Machine,Precision Grinder
Power Source: ELectricity Sealing Protection Method: IP53
Input Signal: TTL / RS232 Axis: 2 Axis
Warranty Period: 12 Months Resolution(μm): 0.1/0.5/1/5
Reference Point: Every 50mm
High Light:

Linear Glass Scale Digital Readout Display

,

SDS6-2V Digital Readout Display

,

2-Axis Digital Readout Display

SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale





The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can complete more tasks and more accurately locate the position of the machine tool.



The functions of SDS6-2V include:



200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option



Where SDS6-2V DRO can be applied:



Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)



Description of SDS6-2V:





The DRO SDS6-2V dual axis electronic reader has multiple applications. In order to meet various processing needs, users can modify the system design and select ideal parameters for machine operation. Operators can use SDS6-2V to perform various tasks, including measuring taper, calculating angles, drilling holes at equal intervals around the center of the circle, applying digital filters, and passing through surfaces with angles. The versatility of SDS6-2V enables it to be used in various machining situations. It can also display the motion trajectory of the machine tool, improve users' understanding of the device's motion trajectory, make it easier for users to observe the real-time trajectory of the machine tool, and determine whether the machine tool is moving according to its normal trajectory. It is also the first company in China to use DRO technology and 16 bit and 32-bit calculators. The maximum a/b input frequency of the DRO system is 5.



Model No:.



SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function



Characteristic​:


Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)



Packaging List :

1 PC 2 Axis LED digital readout SDS6-2V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:



SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale 0SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale 1SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale 2

SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale 3

The rack in the picture is optioned, not standard product.



SINO 2-Axis SDS6-2V Digital Readout Display With Linear Glass Scale 4
