Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE, RoHS
Model Number: SDS2MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement

Description
Name: SDS2MS Digital Reading Display Number Of Axis: 2 Axis
Usage: Milling Machine, Boring Machine Voltage: AC85-250V / 50-60Hz
Effective Range: 30~3000mm Max Of Measuring Speed: 60m/min
Reference Point: One In Each 50mm
High Light:

SDS2MS Digital Reading Display

,

SINO Digital Reading Display

Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement

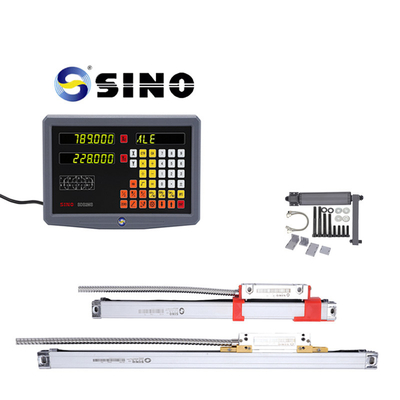

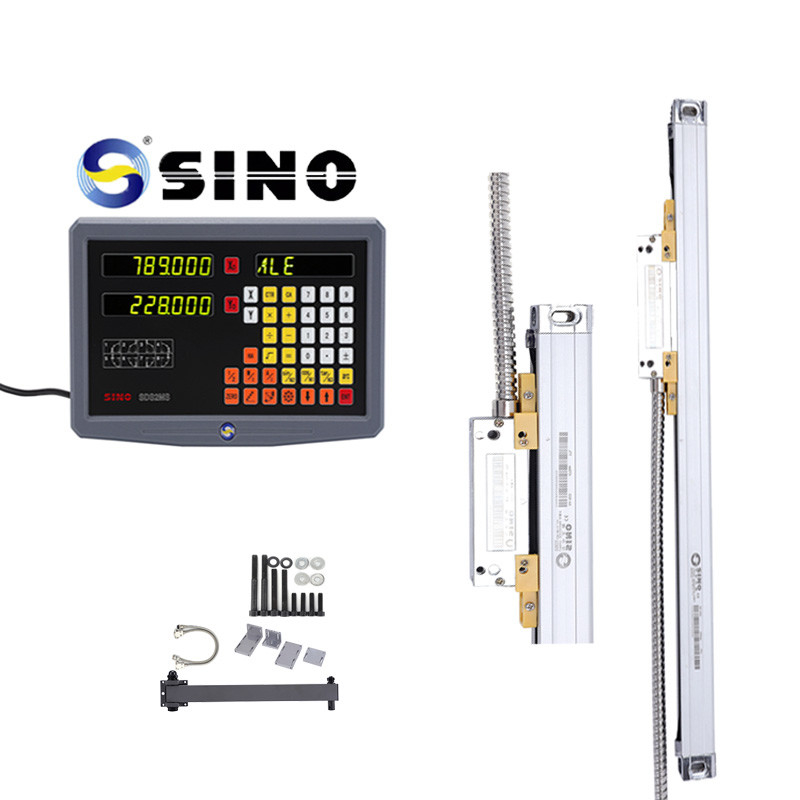

Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:



1. Dual 1. Dual axis DRO: With the help of this kit, you may simultaneously watch and manage the machine tool's movement along two axes, such the X and Y axes in a milling machine. This gives you a very clear picture of the workplace in real time, enabling you to make wise decisions.
2. Magnetic ruler encoder system: SDS2MS is outfitted with a KA linear ruler encoder system, which makes use of magnetic technology, to produce readings that are precise and reliable. The machine shaft's magnetic balance and DRO display unit are utilized to track progress on the job and give position feedback whenever needed, allowing the equipment to be positioned accurately and on schedule.

3. Wide voltage range:

The SDS 2MS DRO kit can function well in a broad voltage range of 85V to 240V AC. Its voltage regulation capability guarantees compatibility with various power supply standards. The equipment can function regularly and measure the machine tool's location accurately only if the voltage is applied correctly.

4. User-friendly interface: Typically comprised of buttons and a digital display screen, the DRO display unit's interface is simple to operate. It has numerous preset functions, and function buttons allow you to quickly flip between them.



Capabilities possessed:



1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.



Detailed parameters of DRO SDS2MS digital readout system:



1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns



Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 0

Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 1



Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 2Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 3Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 4

Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 5

The rack in the picture is optioned, not standard product.



Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 6
