Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:

1. Dual axis DRO: With this kit, you may simultaneously view and control the movement of the machine tool along two axes, such as the X and Y axes of a milling machine. You will be able to make well-informed decisions if you can quickly and clearly understand the milling machine's motion trajectory while it is operating.

2. Magnetic ruler encoder system: When SDS2MS and KA linear ruler encoder system work together, magnetic technology may generate precise and trustworthy readings, positioning to the machine tool's real-time location. The equipment can rapidly and accurately determine the proper position by using the machine shaft's DRO display unit and magnetic balance to track work progress and provide position feedback when needed.

3. The SDS 2MS DRO kit needs a broad voltage range of 85V to 240V AC. Its capacity to regulate voltage guarantees compliance with different power supply standards. The apparatus can only measure the machine tool's location precisely and operate appropriately when the voltage is applied correctly.
4. User-friendly interface: The SDS2MS has a digital display screen and buttons, and the DRO display unit's interface is easy to use. With its several preset features and function buttons, you may rapidly switch between them to get useful info whenever you need it.


Capabilities possessed:

1. Conversion of radius to diameter.
2. Converting mm to inches.
3. Conversion of absolute to relative.
4. A feature for mid-splitting.
5. Simple function for "R"
6. The "R" function is smooth.
7. PCD hole positioning on circumference.
8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

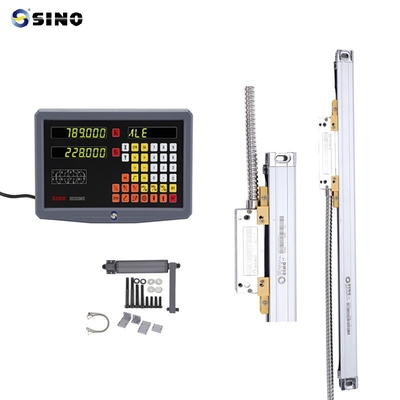

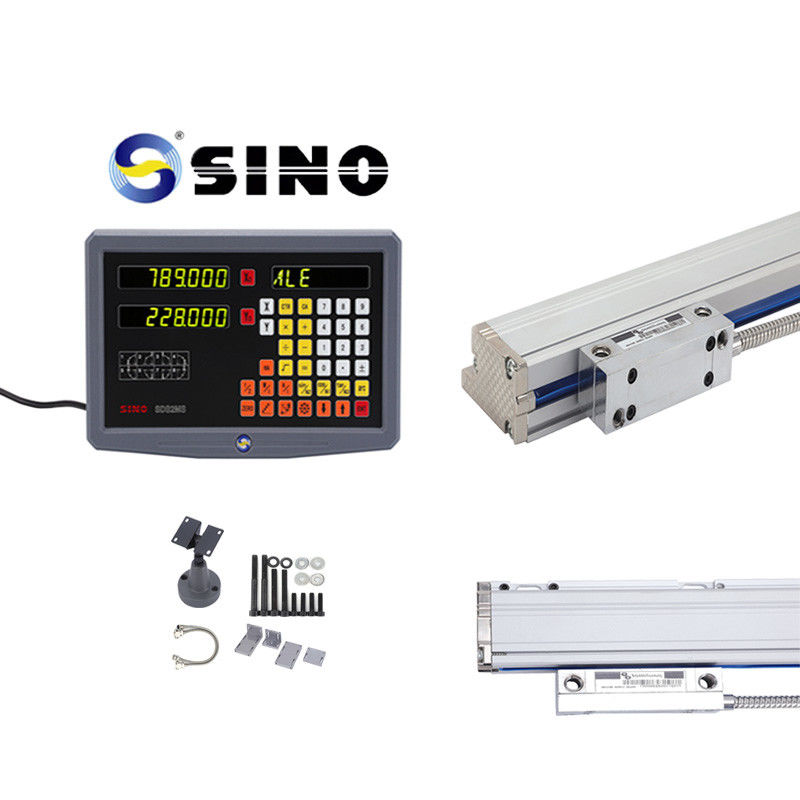

Product image /photos:

​

The rack in the picture is optioned, not standard product.
