Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE, RoHS
Model Number: SDS2MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement

Description
Name: SDS2MS Digital Reading Display With 2 Linear Scales Number Of Axis: 2 Axis DRO With Linear Encoder
Usage: Milling Machine, Drilling Machine Voltage: AC85-250V / 50-60Hz
Effective Range: 0~3000mm Resolution: 0.1/0.5/1/5μm
Energy Source: +5V±5%、80mA
High Light:

Frequently Used Digital Reading Display

,

SDS2MS Digital Reading Display

Frequently Used SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement

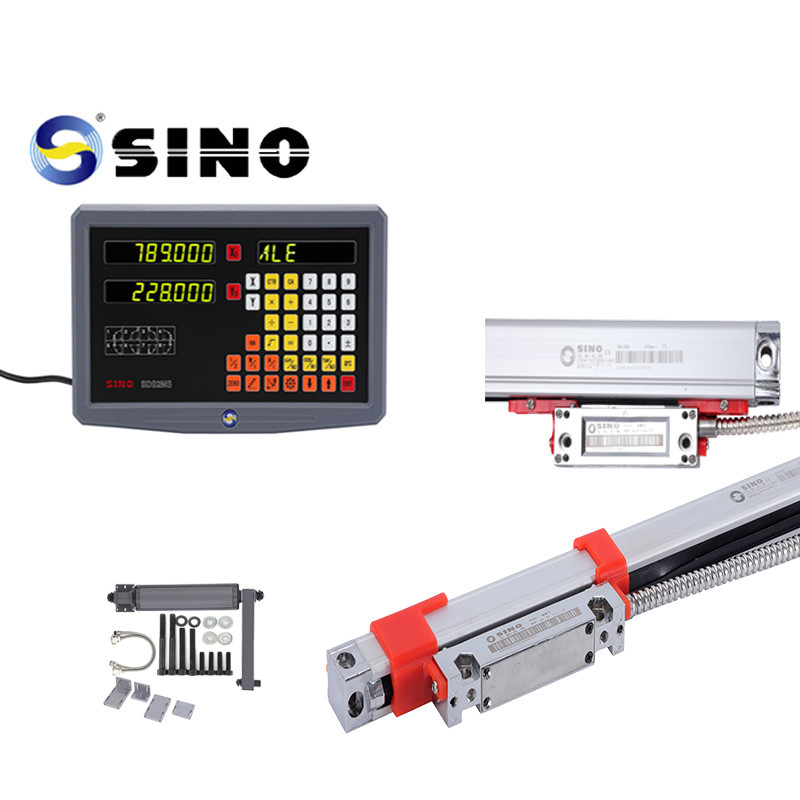

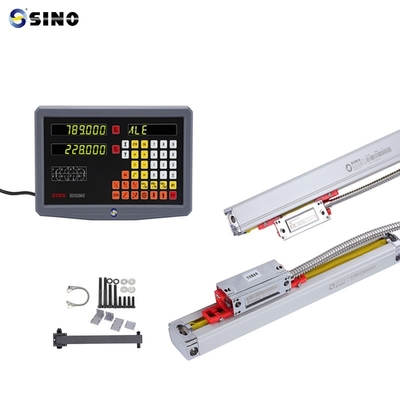

Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:



1. Dual axis DRO: With the support of this kit, you can simultaneously monitor and control the movement of the machine tool along two axes, such as the X and Y axes in a milling machine. This allows you to have a very clear understanding of the real-time workplace, allowing you to make the right decisions.

2. Magnetic ruler encoder system: In order to generate accurate and consistent readings, SDS2MS is equipped with a KA linear ruler encoder system, which uses magnetic technology. The DRO display unit and magnetic balance installed on the machine shaft are used to monitor work progress and provide position feedback at any time, reflecting the position of the equipment in a timely manner.

3. Broad voltage range: Between 85V and 240V AC, the SDS 2MS DRO kit can function best in a broad voltage range. Its voltage regulation capability guarantees compatibility with various power supply standards. The equipment can function regularly and measure the machine tool's location accurately only if the voltage is applied correctly.

4. User-friendly interface: Typically comprised of buttons and a digital display screen, the DRO display unit's interface is simple to operate. It has numerous preset functions, and function buttons allow you to quickly flip between them.



Capabilities possessed:



1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.



Detailed parameters of DRO SDS2MS digital readout system:



1. AC 85 v ~ 250 v / 50 hz ~ 60 hz is the voltage range.
2. 15 watts of power used: 25 va
3. Align the number using the a and two locations.
4. Demonstrate how to use eight meters of words and symbols to output data information using a signed seven display (two or three axes).
5. Net Weight: 2.9 lbs./1.3 kilogram
6. The input signal is an easy-to-use interface with a programmable controller, TTL, EIA-422 open collector output signal.
7. Permit a frequency of input signal exceeding 100 kHz.
8. Ten, five, two, one micron, one micrometer, and five microns are the resolutions to link.



Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 0

Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 1



Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 2Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 3Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 4

Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 5

The rack in the picture is optioned, not standard product.



Frequently SDS2MS Digital Reading Display For Milling Machine Accuracy Measurement 6
