High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO

High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO
High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO
High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO

Large Image :  High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE, RoHS
Model Number: SDS2MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO

Description
Item: SINO Digital Readout Display High-precision 2-axis SDS2MS With Linear Glass Scale Number Of Axis: 2 Axis Readout For Milling Machine Lathe
Usage: Drilling,Precision Grinder Voltage: AC85-250V / 50-60Hz
Display: LED Display, Digital Readout Input Signal: TTL / RS232/ EIA-422-A
Warranty Period: 1 Year Warranty
High Light:

High-Precision Digital Readout Display

,

SDS2MS Digital Readout Display

,

Linear Glass Scale Digital Readout Display

SINO Digital Readout Display High-Precision 2-Axis SDS2MS With Linear Glass Scale





Overview of Dual Axis SDS 2MS Digital DRO and KA Grating Ruler



1. Dual axis DRO: This kit allows you to control and observe the machine's movement along two axes, such as the X and Y axes in a mill. This allows you to evaluate the working progress of the equipment and determine whether the machine tool has reached the expected point.

2. Magnetic ruler encoder system: The KA linear ruler encoder system uses magnetic technology and works with the DRO display unit and the magnetic glass scale installed on the machine.

3. Wide voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100 and 240 volts AC. Any device has its appropriate operating voltage, and only when the required voltage is met can the device function properly.

4. User friendly interface: The DRO display unit has an easy-to-use interface consisting of buttons and a digital display screen. Users can switch between different measurement data by using function buttons and select appropriate readings to assist in device adjustment.



Capabilities possessed:



1. Radius to diameter conversion.
2. MM/Inch conversion.
3. Absolute/relative conversion.
4. Mid-splitting function.
5. Simple "R" function.
6. Smooth "R" function.
7. Position the PCD hole on the circumference.
8. 200 groupings with zero position memory.



Detailed parameters of DRO SDS2MS digital readout system:



1. Voltage range: AC 85 v to 250 v, 50 Hz to 60 Hz.

2. 15W power consumption: 25 volts

3. Coordinate the integer using a coordinate and two coordinates.

4. Demonstrate that signed seven displays (two or three axes) emit data information using eight meters of words and symbols.

5. Net Weight: 1.3kg (2.9lb)

6. The input signal is TTL, and the output signal is EIA-422 open collector, making it easy to link with a programmed controller.

7. Allow the input signal frequency to exceed 100 KHz.

8. Connect a resolution of 10 microns, 5 microns, 2 microns, 1 micron, and 0.5 microns.



Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

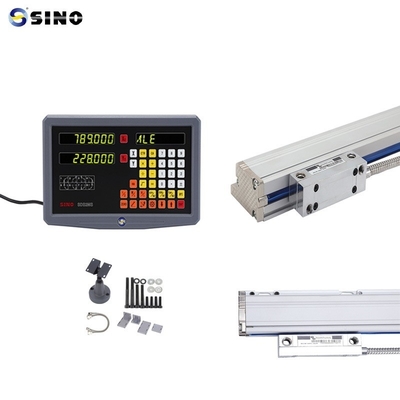

High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 0

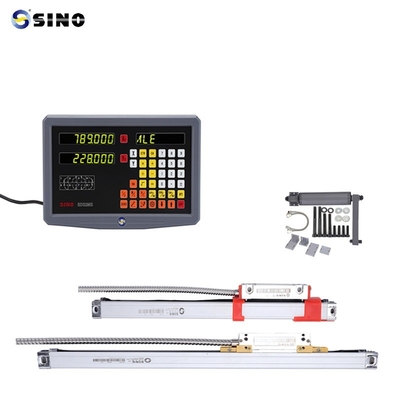

High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 1



High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 2High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 3High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 4

High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 5

The rack in the picture is optioned, not standard product.



High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO 6
