SINO Digital Readout Display With Linear Glass Scale For SDS2MS Offers High Precision In Two Axes

SINO Digital Readout Display With Linear Glass Scale For SDS2MS Offers High Precision In Two Axes

verview of SDS 2MS Dual Axis Digital DRO and KA Grating Ruler

1. Dual axis DRO: With this kit, you can concurrently operate and view the movement of the machine along two axes, such as the X and Y axes in a milling machine. This enables you to assess the equipment's operational status and ascertain whether the machine tool has reached the user's desired position. 2. Magnetic ruler encoder system: Using magnetic technology, the KA linear ruler encoder system. Dynamic readings that are quite accurate can be acquired by working together with the DRO display unit and the magnetic glass scale that is mounted on the machine shaft. This reading has the ability to promptly reflect the equipment's position.Operators that receive fast input are better equipped to assess whether the machine tool's movement is producing the desired effects and respond accordingly.

3. Wide voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100 and 240 volts AC. Any gadget has an appropriate operating voltage, and only when the required voltage is reached can the device function effectively, helping users accurately measure at specific places.
4. User pleasant interface: The DRO display unit includes an easy-to-use interface consisting of buttons and a digital display screen. Users can use different function buttons to switch between different measurement data to cope with complex working conditions.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

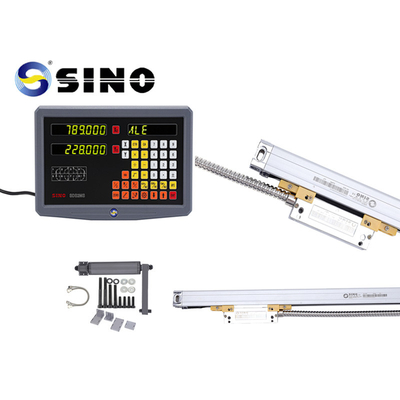

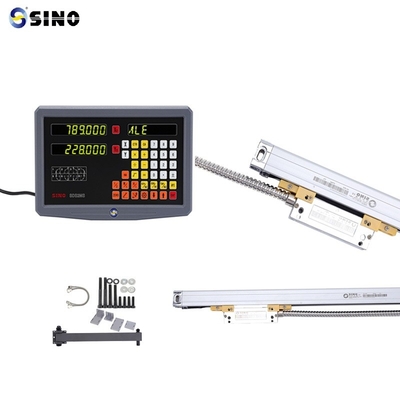

Product image /photos:

​

The rack in the picture is optioned, not standard product.
